Apraksts

• Manufacturer C&K
• Type of switch microswitch TACT
• Contacts configuration SPST-NO
• Contacts configuration
• Number of positions 2
• DC contacts rating @R(at resistive load) 0,05A / 12V DC
• at resistive load
• Mounting SMT
• Illumination none
• Operating Force 1N

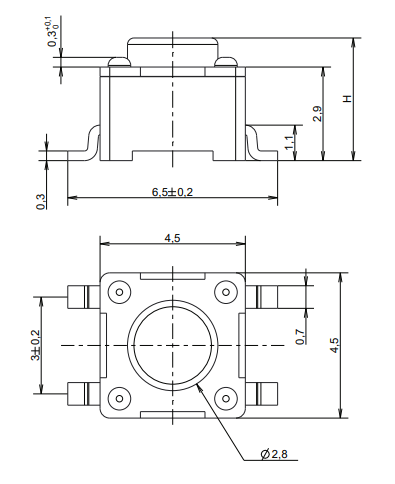

• Body dimensions 4,5x4,5x2,9mm
• Button height(measured from PCB) 3,8mm
• measured from PCB
• Switching method(the position in bracket indicates momentary position.) OFF-(ON)
• The position in bracket indicates momentary position.
• Terminal pitch 3x6,5mm
• Operating temperature -20...70°C
• Button shape round
• Actuator colour black
• Key stroke 0,25mm
• Leads for PCB
• Max. contact resistance: 100mΩ
• Min. insulation resistance 0,1GΩ
• Contact plating silver plated
• IP rating IP40
• Electrical life 100000 cykli
• Kind of package reel, tape
• Quantity in set/package 2000szt.
• Manufacturer series PTS647
• Number of terminals 4
• Stable positions number 1
• Masa bruto0.137 g

Parametri

SMD
SPST-NO
0.05A/12VDC
IP40
4.5x4.5x2.9mm
Horizontāls
1N
0.9mm

Papildu dokumentācija
