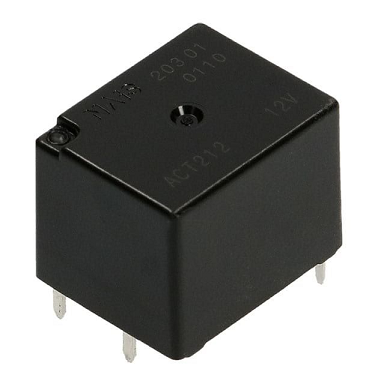

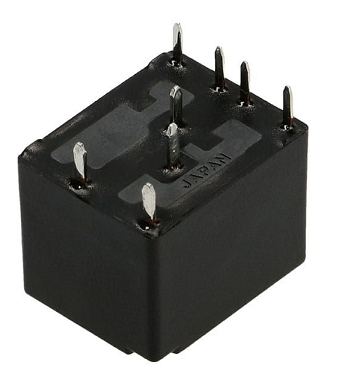

Apraksts

• anufacturer PANASONIC
• Type of relay electromagnetic
• Contacts configuration SPDT x2
• Rated coil voltage 12V DC
• Contact current max. 25A
• DC contacts rating @R 20A / 14V DC
• Relay variant automotive
• Coil resistance 180Ω
• Coil power consumption 0,8W
• Contact material silver alloy
• Operating temperature -40...85°C
• Body dimensions 17,4x14x13,5mm
• Mounting PCB
• Contact resistance 100Ω
• Leads for PCB
• Mechanical durability 10000000 cykli
• Coil current 66,7mA
• Operate time 10ms
• Electrical life 100000 cykli
• Terminal pitch 4,3mm
• Masa bruto8 g

Parametri

PANASONIC
12VDC
SPDTx2
20A/14VDC
uz saslēgšanu/atslēgšanu
monostabilais
2
2
