Apraksts

• Manufacturer AXIOMET
• Meter type digital multimeter
• Type of display used LCD 3,75 digit (3999)
• Sampling 3x/s
• DC voltage measuring range 100µ...400m/4/40/400/600V
• DC voltage measuring accuracy ±(0,5% + 4 digits)
• AC voltage measuring range 1m...4/40/400/600V
• AC voltage measuring accuracy ±(0.8% + 6 digits)
• DC current measuring range 0,1µ...400µ/4000µ/40m/400m/10A
• DC current measuring accuracy ±(1% + 10 digits)
• AC current measuring range 0,1µ...400µ/4m/40m/400m/10A
• AC current measuring accuracy ±(1,5% + 10 digits)
• Resistance measuring range 0,1...400/4k/40k/400k/4M/40MΩ
• Resistance measuring accuracy ±(0,8% + 4 digits)
• Capacitance measuring range 1p...4n/40n/400n/4µ/40µ/100µF
• Capacitance measuring accuracy ±(3,5% + 8 digits)
• Frequency measuring range 0,001...1/10/100/1k/10k/100k/1M/30MHz
• Frequency measuring accuracy ±(0.5% + 10 digits)
• Temperature measuring range -20...1000°C
• Temperature measurement accuracy ±(1% + 5 digits)
• Temperature measurement resolution 1°C
• Diode test 0,5mA, 1,5V
• Continuity test acoustic signal for R<50Ω
• Overall dimensions (W x D x H) 74 x 36 x 145mm
• Weight with battery 190g

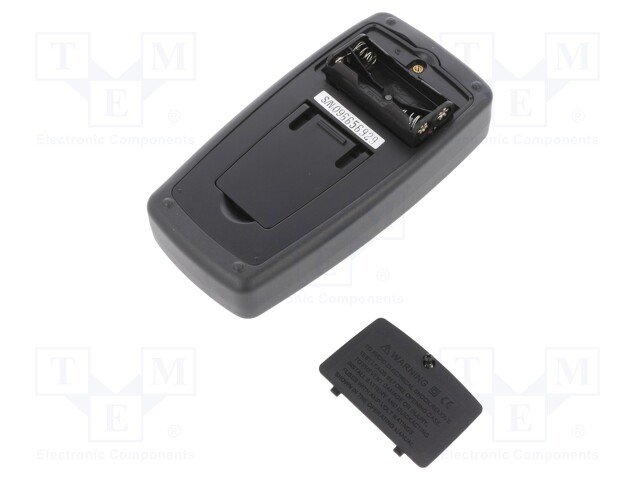

• Power supply 2 batteries 1,5V LR03 (AAA), battery not included
• Measurement frequency, AC voltage, DC voltage, capacitance, AC current, DC current, resistance, temperature, duty cycle Measuring instrument features:
• auto and manual ranging
• automatic power-off
• HOLD function
• REL function
• impact resistant holster
• overflow indicator
• low battery indicator
• Standard equipment:

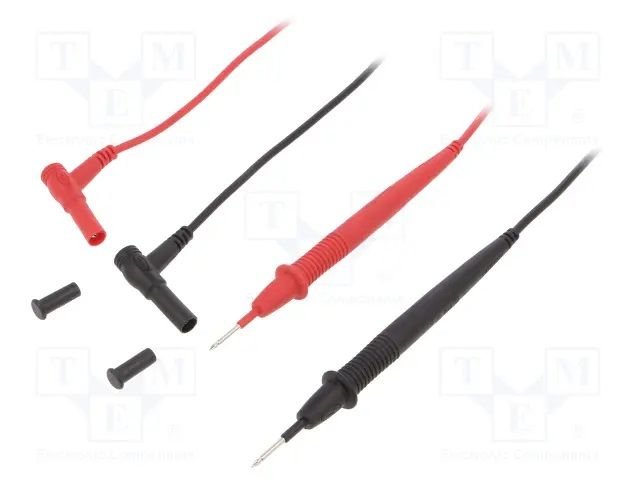

• test leads

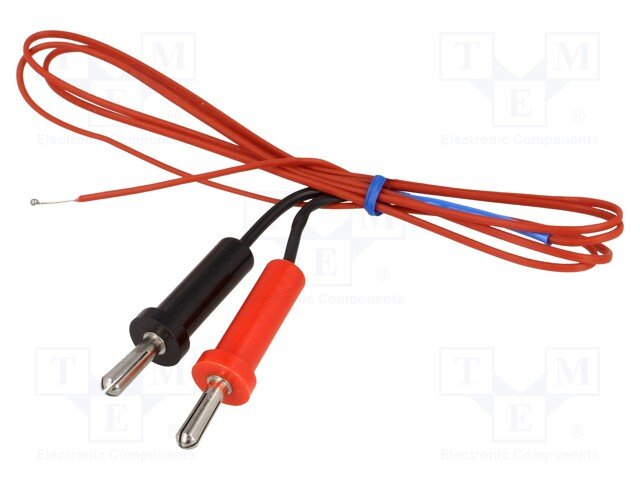

• drop-like K-type temperature probe
