Apraksts

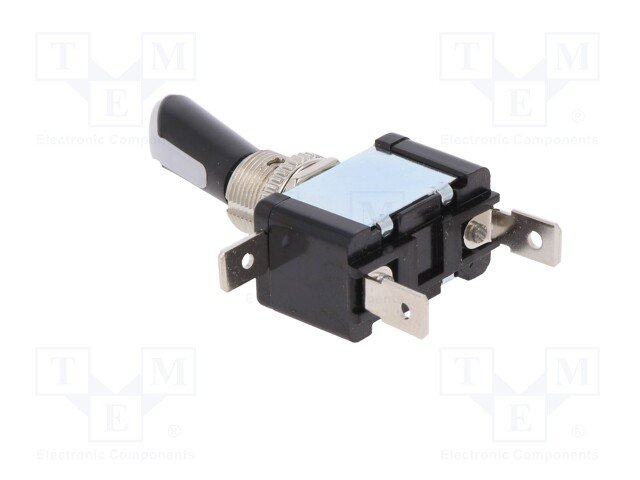

• Manufacturer SCI
• Type of switch toggle
• Number of positions 2
• Contacts configuration SPST
• Switching method
• (item in brackets is instantaneous) OFF-ON
• DC contacts rating @R
• (at resistive load) 20A / 12V DC
• Leads 6,3x0,8mm connectors
• Terminals plating nickel
• Operating temperature -20...85°C
• Kind of toggle round
• Mounting hole diameter Ø12mm
• Knob height 26mm
• Max. contact resistance: 50mΩ
• Body dimensions 28.6x16x19.9mm
• Actuator material plastic
• Manufacturer series R13-404
• Related items R1710A
• Panel thickness max. 6mm
• Test voltage 1.5kV
• Illumination LED
• Backlight colour red/green
• Stable positions number 2

Parametri

SPST
20A/12VDC
OFF-ON
2
IP00
2
Tumblers
Ar fiksāciju
M12
1
LED12VDC
