Apraksts

• Manufacturer SCI
• Type of switch toggle
• Number of positions 2
• Contacts configuration SPST
• Switching method
• (item in brackets is instantaneous) OFF-ON
• DC contacts rating @R
• (at resistive load) 20A / 12V DC
• Leads 6,3x0,8mm connectors
• Terminals plating nickel
• Kind of toggle round

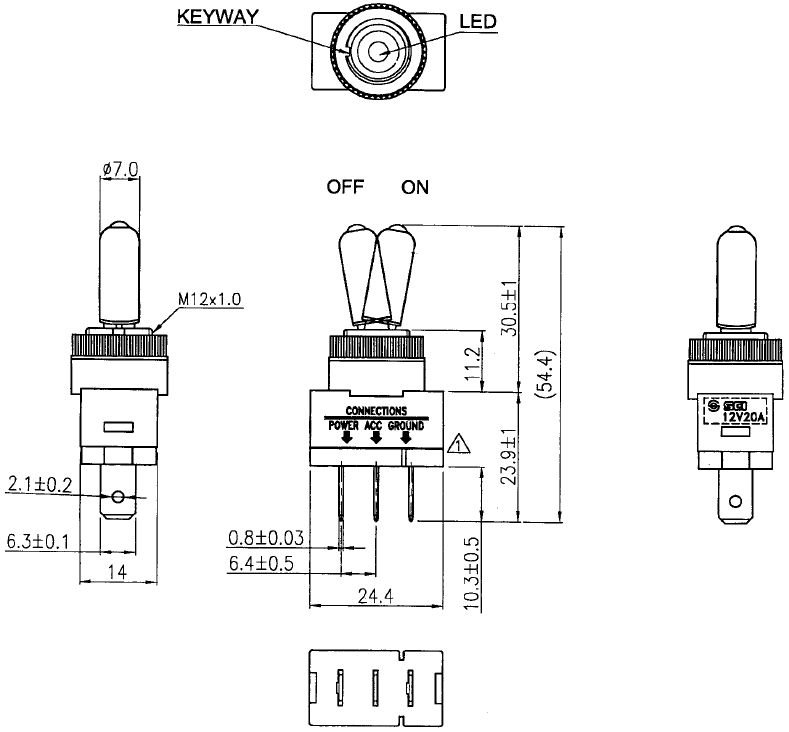

• Mounting hole diameter Ø12.2mm
• Knob height 19.3mm
• Max. contact resistance: 50mΩ
• Body dimensions 24.4x14x18.7mm
• Actuator material metal
• Manufacturer series R13-61
• Related items R1710A
• Panel thickness max. 2mm
• Test voltage 1.5kV
• Illumination LED
• Backlight colour red
• Stable positions number 2

Parametri

SPST-NO
20A/12VDC
OFF-ON
2
IP00
2
Tumblers
Ar fiksāciju
M12
1
LED12VDC

Papildu dokumentācija
