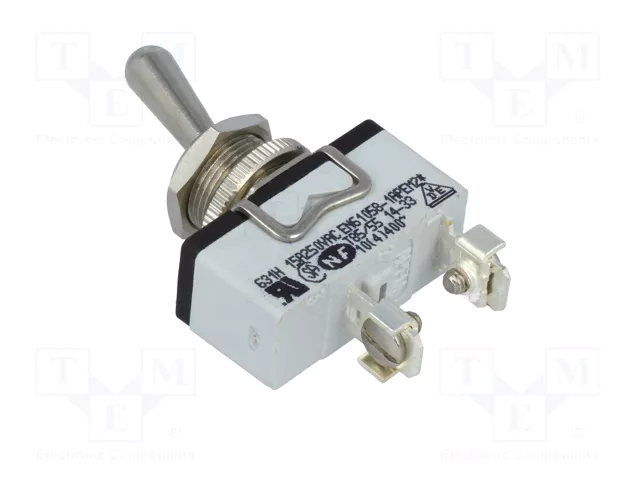

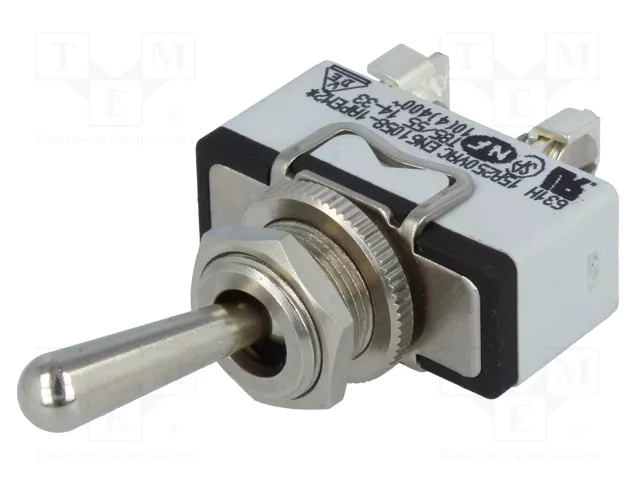

Apraksts

• Manufacturer APEM
• Type of switch toggle
• Number of positions 2
• Contacts configuration SPST
• Contacts configuration
• Switching method(the position in bracket indicates momentary position.) ON-OFF
• The position in bracket indicates momentary position.
• AC contacts rating @R(at resistive load) 15A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 15A / 12V DC
• at resistive load
• Leads screw terminals

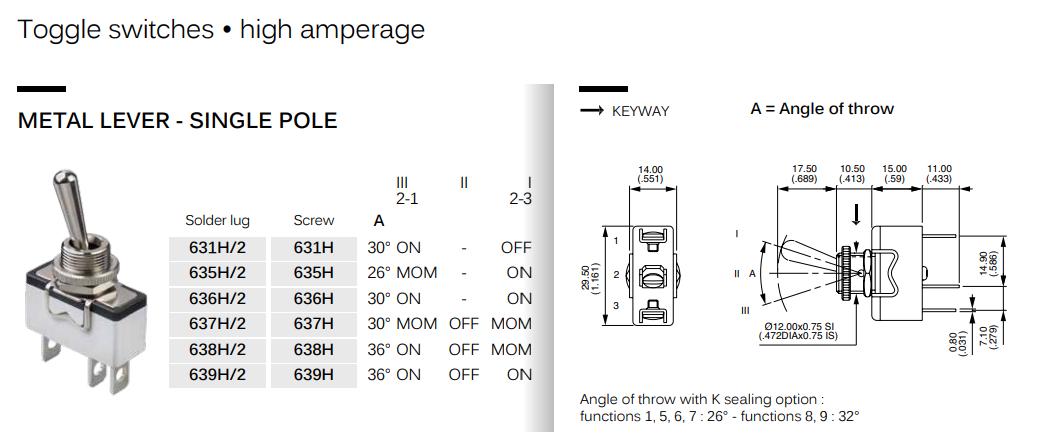

• Manufacturer series 600H
• Operating temperature -20...55°C
• Kind of toggle round
• Mounting hole diameter Ø12.2mm
• Knob height 17.5mm
• Max. contact resistance: 10mΩ
• Body dimensions 29.5x14x15mm
• Electrical life 10000 cycles
• Contact plating silver nickel alloy
• Min. insulation resistance 1GΩ
• Related items U598, U600, U851, U853, U1151, U1153, U1565, U1567
• Panel thickness max. 4.5mm
• Stable positions number 2
• Gross weight22.3 g

Parametri

SPST
15A/250VAC
15A/12VDC
ON-OFF
2
IP00
2
Tumblers
Ar fiksāciju
M12
1
Bez apgaismojuma
