Apraksts

• Type of switch toggle
• Number of positions 2
• Contacts configuration  SPDT
• Switching method  ON-(ON)
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  3A / 250V AC
• (at resistive load)
• Leads for soldering
• Operating temperature -25...85°C
• Kind of toggle round
• Mounting hole diameter Ø6mm
• Knob height 11mm
• Max. contact resistance: 20mΩ

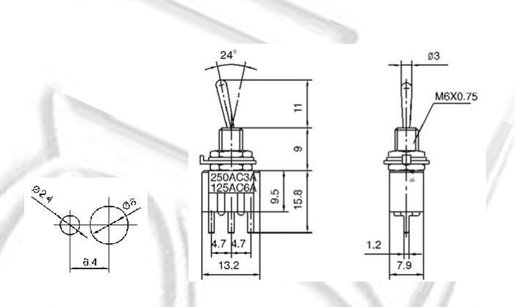

• Body dimensions 13.2x7.9x9.5mm
• Electrical life 20000 cycles
• Actuator material metal
• Related items TSPC05-M
• Body colour black
• Soldering temperature 260°C / 4 s
• Stable positions number 1
• Panel cutout see
• Additional information
• Gross weight: 5 g
• Manufacturer part number: TSM112A1

Parametri

SPDT
3A/250VAC
ON-(ON)
2
IP00
1
Tumblers
M6
1
Bez apgaismojuma
Bez fiksācijas

Papildu dokumentācija
