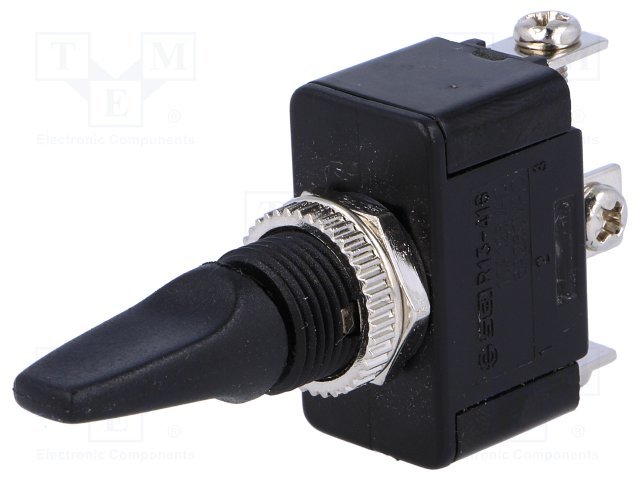

Apraksts

• Manufacturer SCI
• Type of switch toggle
• Number of positions 3
• Contacts configuration SP3T
• Switching method(the position in bracket indicates momentary position.) ON-OFF-ON
• AC contacts rating @R(at resistive load) 6A / 250V AC
• Leads M3 screws
• Terminals plating nickel
• Operating temperature -25...70°C
• Kind of toggle flat
• Mounting hole diameter Ø12.2mm
• Knob height 16.8mm
• Max. contact resistance: 50mΩ

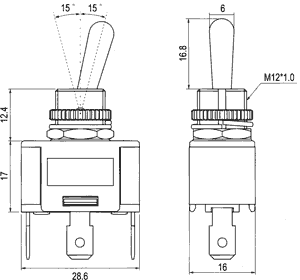

• Body dimensions 28.6x16x17mm
• Panel thickness max. 5mm
• Body material polyamide
• Lever colour black
• Flammability rating UL94V-2
• Manufacturer series R13-416
• Stable positions number 3

Parametri

SP3T
6A/250VAC
ON-OFF-ON
3
IP00
3
Tumblers
Ar fiksāciju
M12
1
Bez apgaismojuma

Papildu dokumentācija
