Apraksts

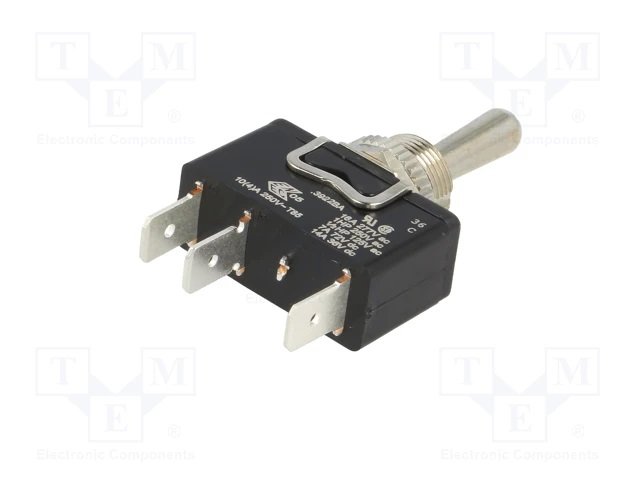

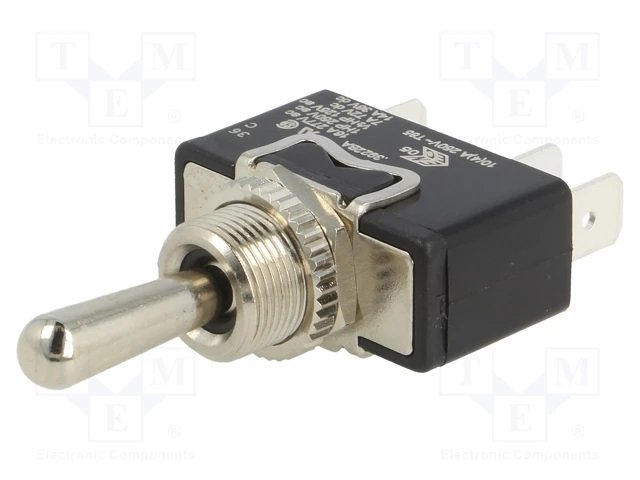

• Manufacturer BULGIN
• Type of switch toggle
• Number of positions 3
• Contacts configuration  SP3T
• Switching method  (ON)-OFF-(ON)
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  16A / 250V AC
• (at resistive load)
• Leads 6,3x0,8mm connectors
• Kind of toggle round

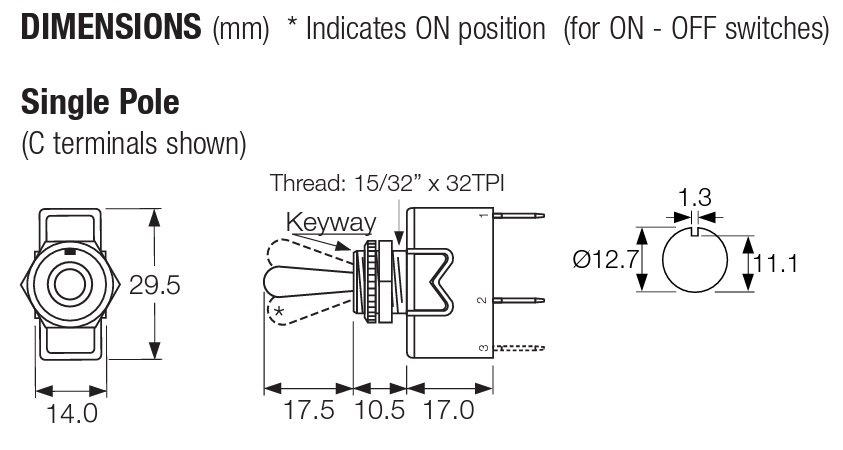

• Mounting hole diameter Ø12.7mm
• Knob height 17.5mm
• Max. contact resistance: 100mΩ
• Body dimensions 29.5x14x17mm
• Actuator material metal
• IP rating IP67
• Panel thickness max. 4mm
• Body material polyamide
• Manufacturer series 3900
• Stable positions number 1
• Additional information
• Gross weight: 21.08 g
• Manufacturer part number: C3922BA

Parametri

SP3T
16A/250VAC
(ON)-OFF-(ON)
3
IP67
1
Tumblers
Bez fiksācijas
M12
1
Bez apgaismojuma

Papildu dokumentācija
