Apraksts

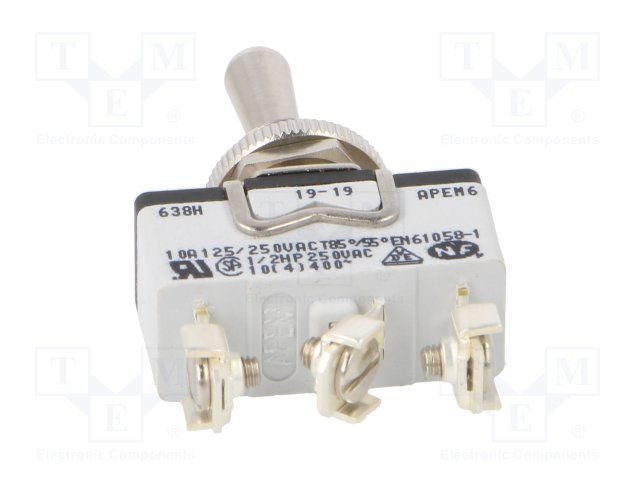

• Manufacturer APEM
• Type of switch toggle
• Number of positions 3
• Contacts configuration SP3T
• Switching method
• (item in brackets is instantaneous) ON-OFF-(ON)
• AC contacts rating @R
• (at resistive load) 10A / 250V AC
• DC contacts rating @R
• (at resistive load) 5A / 25V DC
• Leads screw terminals
• Operating temperature -20...55°C
• Kind of toggle round
• Mounting hole diameter Ø12.2mm
• Knob height 17.5mm
• Max. contact resistance: 10mΩ
• Body dimensions 29.5x14x15mm
• Electrical life 10000cycles
• Contact plating silver nickel alloy
• Min. insulation resistance 1000MΩ
• Manufacturer series 600H
• Related items U1151, U1153, U1565, U1567, U598, U600, U851, U853
• Panel thickness max. 4.5mm
• Stable positions number 2 Additional information
• Gross weight: 21.55 g

Parametri

SP3T
10A/250VAC
ON-OFF-(ON)
3
IP00
2
Tumblers
M12
1
Bez apgaismojuma
5A/24VDC
Ar / Bez fiksācijas

Papildu dokumentācija
