Apraksts

• Manufacturer SCI
• Type of switch toggle
• Number of positions 2
• Contacts configuration  DPDT
• Switching method  ON-ON
• AC contacts rating @R  6A / 250V AC
• Leads for soldering
• Operating temperature -25...70°C
• Kind of toggle flat
• Mounting hole diameter Ø18mm
• Knob height 13mm
• Max. contact resistance: 50mΩ
• Electrical life 6000 cycles
• Manufacturer series R13-405
• Panel thickness max. 5mm
• Body material polyamide
• Flammability rating UL94V-0
• Stable positions number 2

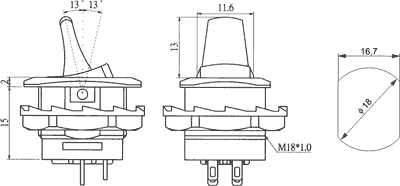

• Dimensions see
• Additional information
• Gross weight: 5.5 g
• Manufacturer part number: R13-405C

Parametri

DPDT
6A/250VAC
ON-ON
2
IP00
2
Tumblers
Ar fiksāciju
M18
2
Bez apgaismojuma

Papildu dokumentācija
