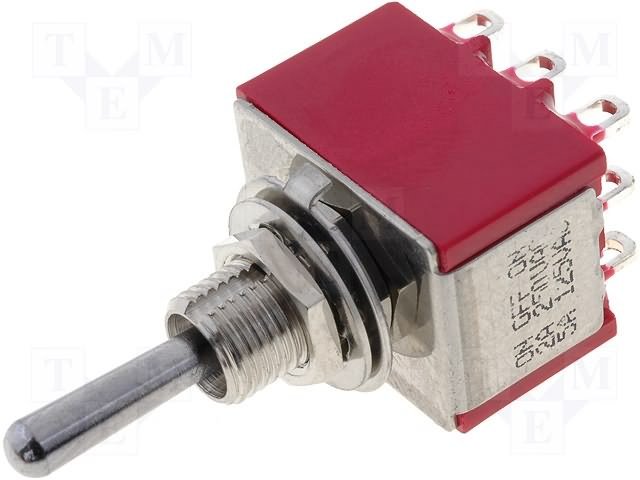

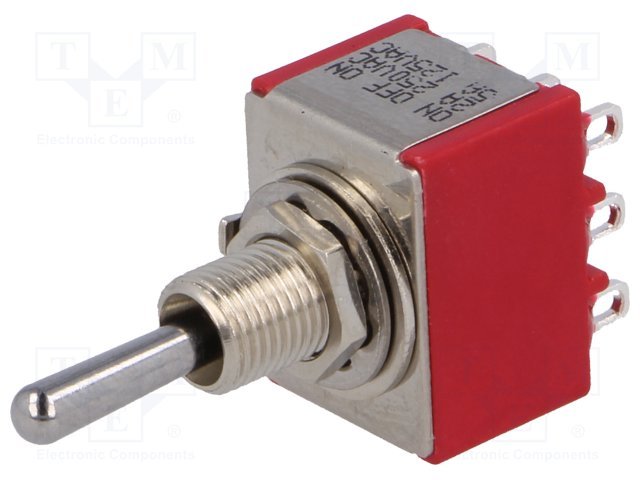

Apraksts

• Manufacturer IC SWITCHES
• Type of switch toggle
• Number of positions 3
• Contacts configuration  3P3T
• Switching method  ON-OFF-ON
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  5A / 125V AC
• (at resistive load)
• DC contacts rating @R  5A / 28V DC
• (at resistive load)
• Leads for soldering
• Operating temperature -30...85°C
• Kind of toggle round
• Mounting hole diameter Ø6.35mm
• Knob height 10.34mm
• Max. contact resistance: 10mΩ
• Electrical life 50000 cycles
• Actuator material brass
• Contact plating silver plated
• Min. insulation resistance 1000MΩ
• Related items ICE1
• Contact material copper alloy
• Body material brass
• Lever plating chromium
• Stable positions number 3
• Dimensions see
• Additional information
• Gross weight: 8.033 g
• Manufacturer part number: IC3201T1B1M1QE

Parametri

3P3T
5A/28VDC
ON-OFF-ON
3
IP00
3
Tumblers
Ar fiksāciju
M6
3
Bez apgaismojuma
5A/125VAC
