Apraksts

• Specification

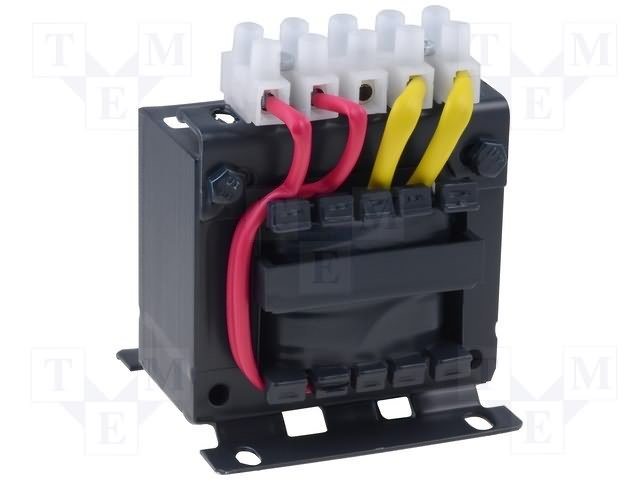

• Transformer type mains
• Power 50VA
• Primary voltage 400V AC
• Secondary voltage 1 42V
• Leads terminal block
• Mounting screw type
• Weight 1kg
• Sealing IP00
• Thermal class Ta130B
• Conform to the norm PN-EN 61558-2-1, PN-EN 61558-2-6
• Pri./sec. insulation strength 4kV/60s
• A dimension 66mm
• B dimension 65mm
• C dimension 85mm
• D dimension 50mm
• E dimension 52mm
• Body dimensions 66 x 85 x 65mm

Parametri

42VAC
1
1190mA
50VA
