Apraksts

• Manufacturer BREVE TUFVASSONS
• Type of transformer mains
• Power 160VA
• Primary voltage 400V AC
• Secondary voltage 1 230V
• Leads terminal block
• Mounting screw type
• Weight 2.6kg
• IP rating IP00
• Thermal class B
• Conform to the norm PN-EN 61558-2-4, PN-EN 61558-2-6
• Insulation class I

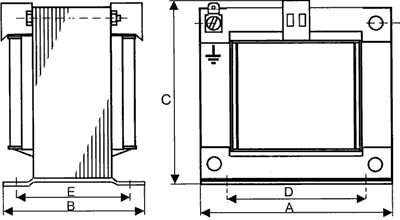

• A dimension 96mm
• B dimension 87mm
• C dimension 114mm
• D dimension 84mm
• E dimension 70mm
• Body dimensions 96 x 114 x 87mm

Parametri

230VAC
1
160VA

Papildu dokumentācija
