Apraksts

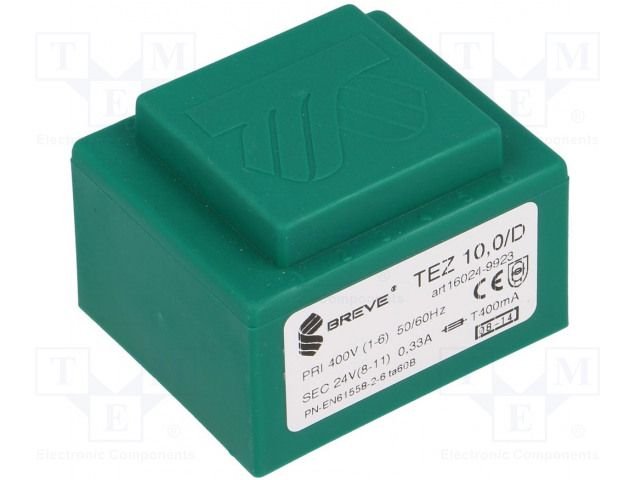

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 10VA
• Primary voltage 400V AC
• Secondary voltage 1 24V
• Secondary winding current 1 416.6mA
• Mounting PCB
• Electrical insulation strength 4kV/60s
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
• Thermal class Ta40B
• Secondary winding terminals 8-11
• Primary winding terminals 1-6
• Weight 280g
• A dimension 44mm
• A1 dimension 27.5mm
• A2 dimension 25mm
• B dimension 52mm
• C dimension 35mm

Parametri

24VAC
1
416.6mA
10VA
