Apraksts

• Specification

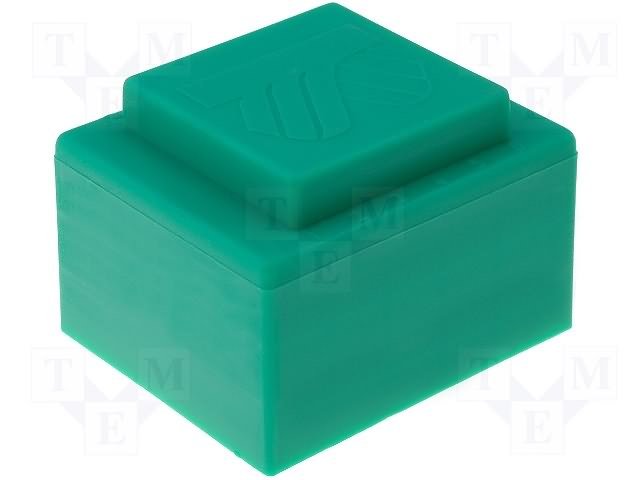

• Transformer type encapsulated
• Power 6VA
• Primary voltage 230V AC
• Secondary voltage 1 9V
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
• Thermal class Ta60B
• Secondary winding terminals 7-9
• Primary winding terminals 1-5
• Weight 200g
• A dimension 38mm
• A1 dimension 25mm
• A2 dimension 25mm
• B dimension 45mm
• C dimension 32mm

Parametri

9VAC
1
660mA
6VA
