Apraksts

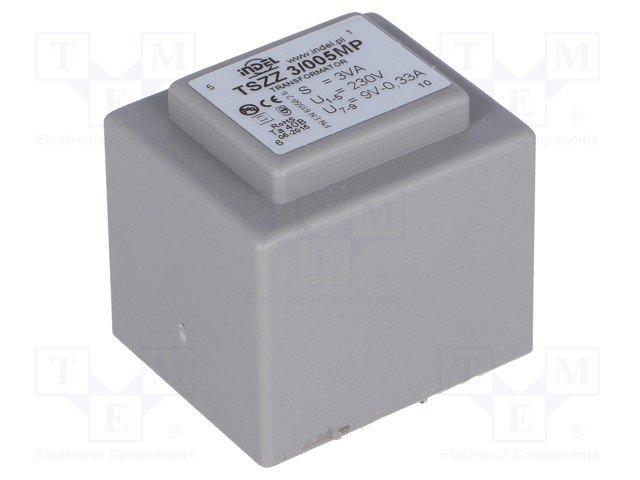

• Manufacturer INDEL
• Type of transformer encapsulated
• Power 3VA
• Primary voltage 230V AC
• Secondary voltage 1 9V
• Secondary winding current 1 0.33A
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B

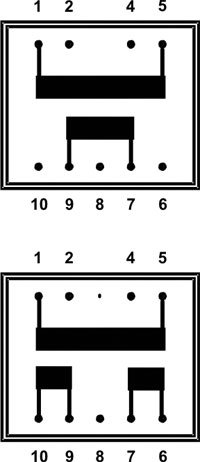

• Secondary winding terminals 07.сен
• Primary winding terminals 01.май
• Insulation class II
• Weight 150g
• A dimension 32.3mm
• A1 dimension 23.6mm
• B dimension 27.3mm
• B1 dimension 20.2mm
• C dimension 29mm
• C1 dimension 25.4mm
• M dimension 20mm
• P dimension 5.05mm
• Electrical insulation strength 4kV/60s
• Additional information
• Gross weight: 110.6 g
• Manufacturer part number: TSZZ3/005MP

Parametri

9VAC
1
333mA
3VA

Papildu dokumentācija
