Apraksts

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 2.5VA
• Primary voltage 230V AC
• Secondary voltage 1 7.5V
• Secondary winding current 1 333.3mA
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000,  PN-EN 61558-2-1:2000,  PN-EN 61558-2-6:2000
• Thermal class Ta40B
• Secondary winding terminals 07.сен
• Primary winding terminals 01.май
• Weight 100g
• A dimension 28mm
• A1 dimension 20mm
• A2 dimension 20mm
• B dimension 33mm
• C dimension 27mm
• Electrical insulation strength 4kV/60s

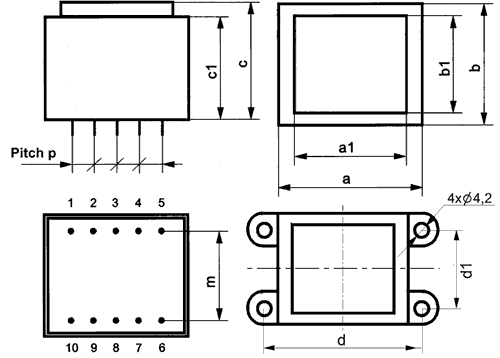

• Dimensions see
• Schematic diagram see
• Additional information
• Gross weight: 96.4 g
• Manufacturer part number: TEZ2.5/D230/7.5V

Parametri

7.5VAC
1
330mA
2.5VA

Papildu dokumentācija
