Apraksts

• Manufacturer INDEL
• Type of transformer encapsulated
• Power 30VA
• Primary voltage 230V AC
• Secondary voltage 1 9V
• Secondary voltage 2 9V
• Secondary winding current 1 1.66A
• Secondary winding current 2 1.66A
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B
• Secondary winding terminals 8-9, 13-14
• Primary winding terminals 1-7
• Insulation class II
• Weight 600g
• A dimension 63.6mm
• A1 dimension 41.8mm
• B dimension 53.6mm
• B1 dimension 35.8mm
• C dimension 47.2mm
• C1 dimension 37.7mm
• D dimension 72.5mm
• D1 dimension 43.5mm
• M dimension 32.5mm
• P dimension 5mm
• Electrical insulation strength 4kV/60s

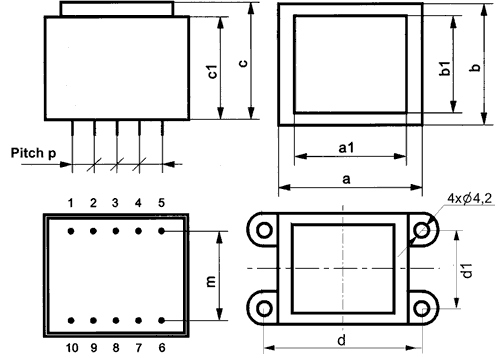

• Dimensions see
• Schematic diagram see
• Additional information
• Gross weight: 606.3 g
• Manufacturer part number: TSZZ30/004M/5

Parametri

2x9VAC
2
2x1667mA
30VA

Papildu dokumentācija
