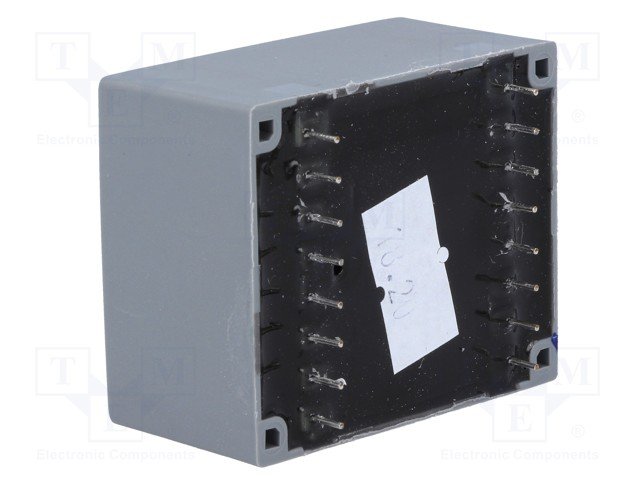

Apraksts

• Manufacturer INDEL
• Type of transformer encapsulated
• Power 10VA
• Primary voltage 230V AC
• Secondary voltage 1 6V
• Secondary voltage 2 6V
• Secondary winding current 1 0.83A
• Secondary winding current 2 0.83A
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B
• Insulation class II
• Weight 150g
• A dimension 44mm
• A1 dimension 37.5mm
• B dimension 53mm
• B1 dimension 47.5mm
• C dimension 27.9mm
• P dimension 5mm
• Electrical insulation strength 4kV/60s
• m dimension 35mm
• Schematic diagram paskatīt

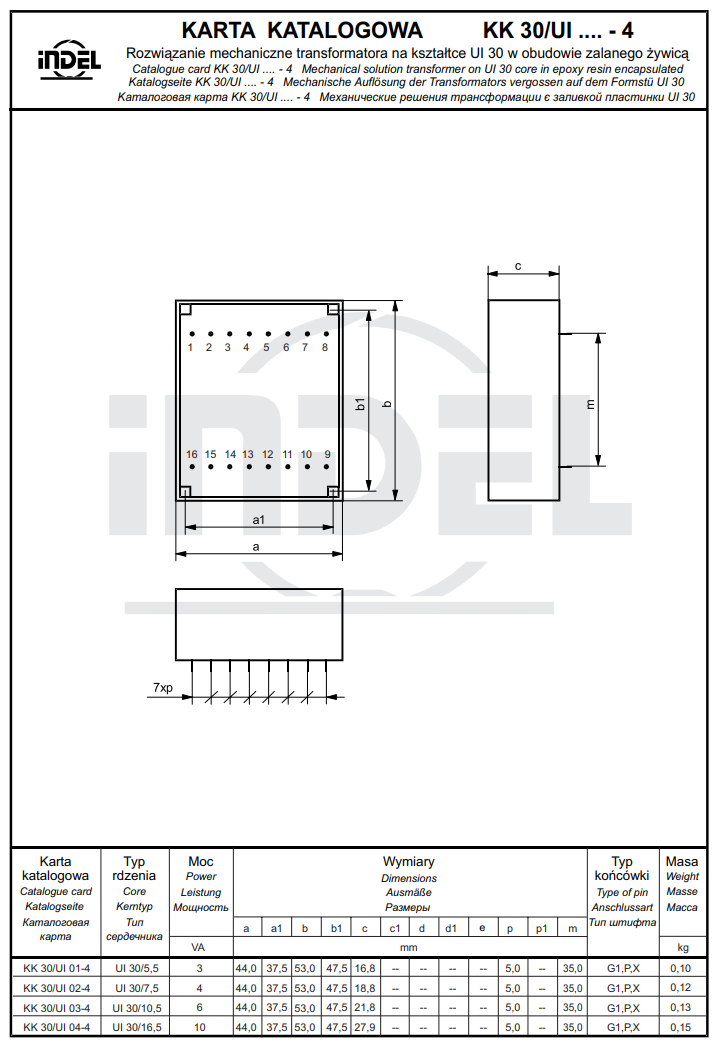

• Dimensions paskatīt
• Papildu informācijas
• Masa bruto: 258.9 g
• Oriģināls simbols: TSPZ10/018

Parametri

2x6VAC
2
2x830mA
10VA
