Apraksts

• Specification
• Transformer type encapsulated
• Power 2.5VA
• Primary voltage 230V AC
• Secondary voltage 1 18V
• Secondary voltage 2 18V
• Secondary winding current 1 0.06A
• Secondary winding current 2 0.06A
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN61558
• Thermal class Ta40B
• Secondary winding terminals 6-7, 9-10
• Primary winding terminals 1-5
• Weight 120g

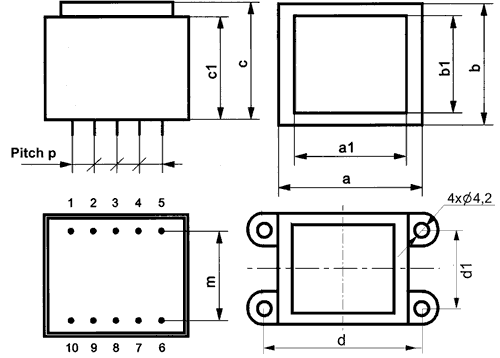

• A dimension 41.4mm
• B dimension 35.2mm
• C dimension 22.2mm
• Insulation class II
• A1 dimension 29.2mm
• P dimension 5mm
• B1 dimension 24.7mm
• C1 dimension 16.7mm
• D1 dimension 43.5mm
• M dimension 25.1mm
• D dimension 72.5mm

Parametri

2x18VAC
2
2x60mA
2.5VA

Papildu dokumentācija
