Apraksts

• Manufacturer INDEL
• Transformer type encapsulated
• Power 20VA
• Primary voltage 230V AC
• Secondary voltage 1 18V
• Secondary voltage 2 18V
• Secondary winding current 1 0.55A
• Secondary winding current 2 0.55A
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B
• Secondary winding terminals 8-9, 13-14
• Primary winding terminals 1-7
• Insulation class II
• Weight 550g

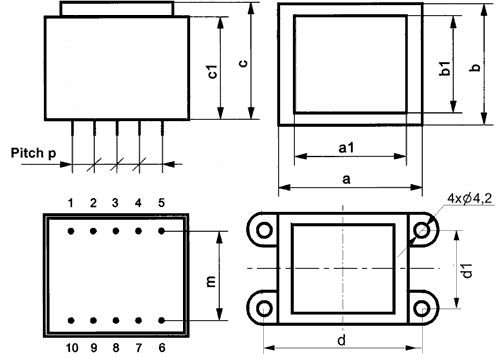

• A dimension 58.8mm
• A1 dimension 40.2mm
• B dimension 49.8mm
• B1 dimension 38.6mm
• C dimension 42.2mm
• C1 dimension 33.8mm
• D dimension 65mm
• D1 dimension 37.5mm
• M dimension 30mm
• P dimension 5mm

Parametri

2x18VAC
2
2x550mA
20VA

Papildu dokumentācija
