Apraksts

• Specification
• Transformer type encapsulated
• Power 10VA
• Primary voltage 230V AC
• Secondary voltage 1 18V
• Secondary voltage 2 18V
• Secondary winding current 1 0.28A
• Secondary winding current 2 0.28A
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B
• Secondary winding terminals 7-8, 11-12
• Primary winding terminals 1-6
• Weight 450g

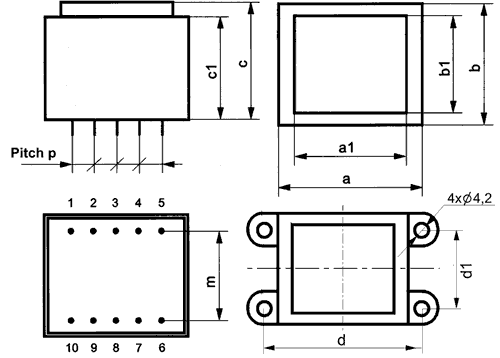

• A dimension 52mm
• B dimension 44mm
• C dimension 34.6mm
• A1 dimension 35.6mm
• Insulation class II
• P dimension 5mm
• B1 dimension 34.6mm
• C1 dimension 27.8mm
• D1 dimension 43.5mm
• M dimension 27.5mm
• D dimension 72.5mm

Parametri

2x18VAC
2
2x330mA
10VA
