Apraksts

• Manufacturer MYRRA

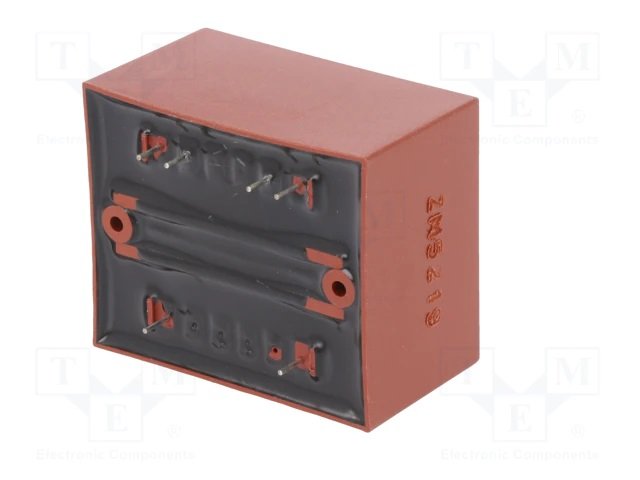

• Type of transformer encapsulated
• Power 10VA
• Primary voltage 230V AC
• Secondary voltage 1 15V
• Secondary voltage 2 15V
• Secondary winding current 1 333mA
• Secondary winding current 2 333mA
• Mounting PCB
• Thermal class T 50B
• Secondary winding terminals 7-8, 11-12
• Primary winding terminals 1-6

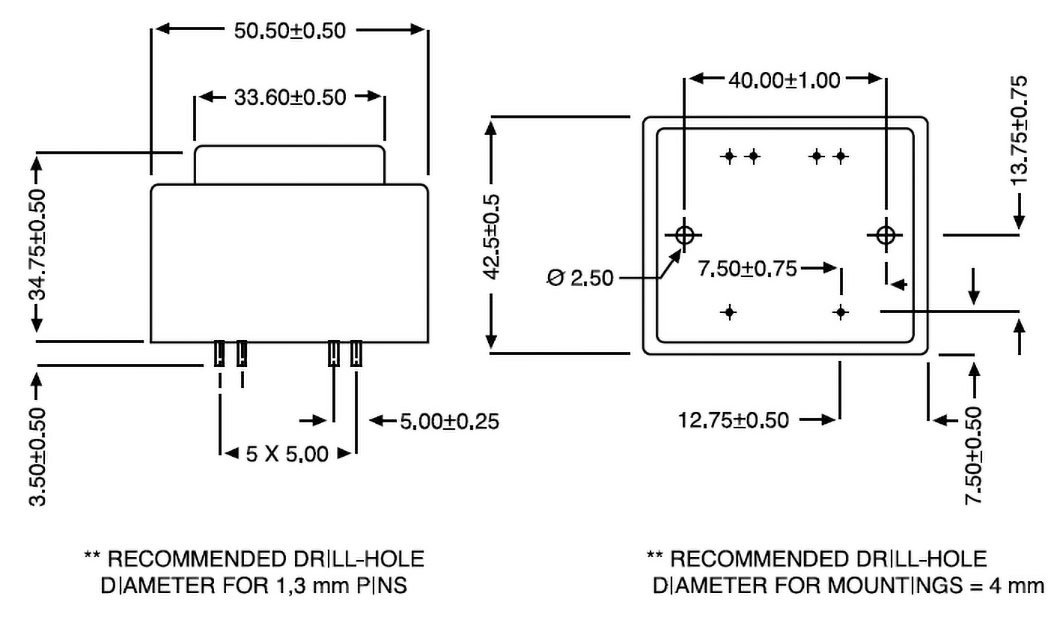

• Body dimensions 50.5x42.5x34.75mm
• Electrical insulation strength 4kV/60s
• Additional information
• Gross weight: 284.55 g
• Manufacturer part number: 44274

Parametri

2x15VAC
2
2x315mA
10VA

Papildu dokumentācija
