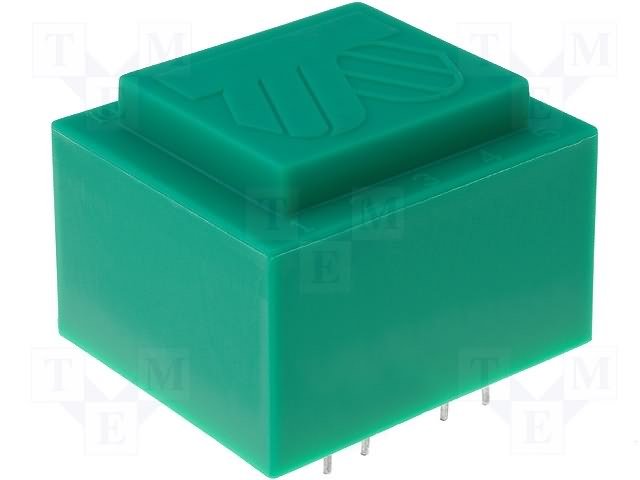

Apraksts

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 10VA
• Primary voltage 230V AC
• Secondary voltage 1 12V
• Secondary voltage 2 12V
• Secondary winding current 1 416.6mA
• Secondary winding current 2 416.6mA
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000,  PN-EN 61558-2-1:2000,  PN-EN 61558-2-6:2000
• Thermal class Ta40B
• Secondary winding terminals 7-8, 11-12
• Primary winding terminals 01.июн
• Weight 280g
• A dimension 44mm
• A1 dimension 27.5mm
• A2 dimension 25mm
• B dimension 52mm
• C dimension 35mm
• Electrical insulation strength 4kV/60s
• Additional information
• Gross weight: 292.5 g
• Manufacturer part number: TEZ10/D230/12-12V

Parametri

2x12VAC
2
2x410mA
10VA

Papildu dokumentācija
