Apraksts

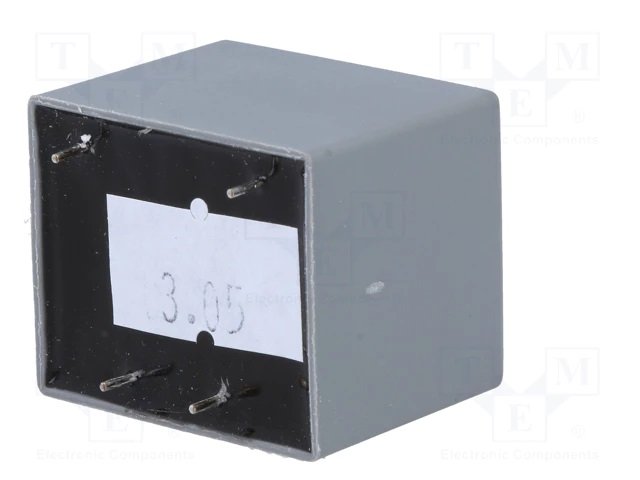

• Manufacturer INDEL
• Type of transformer encapsulated
• Power 3VA
• Primary voltage 230V AC
• Secondary voltage 1 24V
• Secondary winding current 1 0.125A
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B
• Secondary winding terminals 7-9
• Primary winding terminals 1-5
• Insulation class II
• Weight 150g

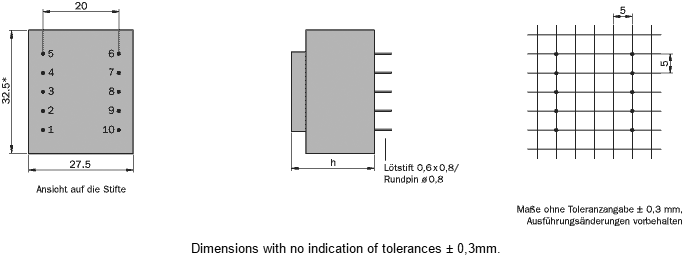

• A dimension 32.3mm
• A1 dimension 23.6mm
• B dimension 27.3mm
• B1 dimension 20.2mm
• C dimension 29mm
• C1 dimension 25.4mm
• M dimension 22mm
• P dimension 5.05mm
• Electrical insulation strength 4kV/60s

Parametri

24VAC
1
125mA
3VA

Papildu dokumentācija
