Apraksts

• Specification

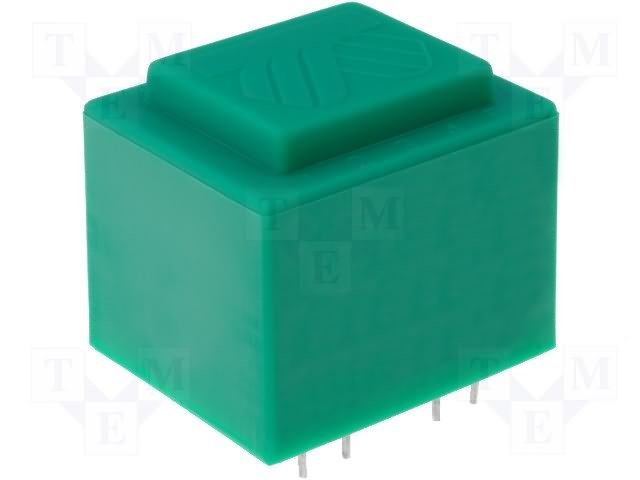

• Transformer type encapsulated
• Power 10VA
• Primary voltage 230V AC
• Secondary voltage 1 15V
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN61558-1:2000, PN-EN61558-2-1:2000, PN-EN61558-2-6:2000
• Thermal class Ta60B
• Secondary winding terminals 8-11
• Primary winding terminals 1-6
• Weight 280g

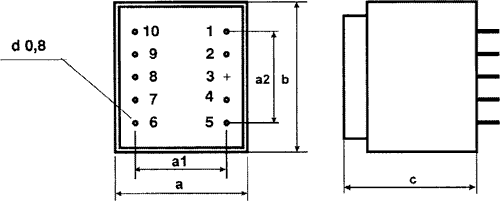

• A dimension 44mm
• B dimension 52mm
• C dimension 35mm
• A1 dimension 27.5mm

Parametri

15VAC
1
670mA
10VA

Papildu dokumentācija
