Apraksts

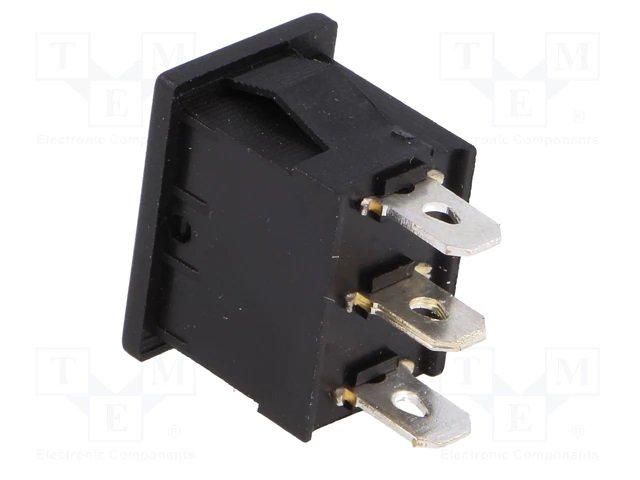

• Type of switch ROCKER
• Contacts configuration  SP3T
• Number of positions 3
• Switching method  (ON)-OFF-(ON)
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  3A / 250V AC
• (at resistive load)
• Key button colour black
• Illumination none
• Max. contact resistance: 35mΩ
• Body colour black
• Operating temperature -30...80°C
• Leads 4,8x0,8mm connectors
• Electrical life 10000 cycles
• Mounting hole diameter 19.2x13mm
• Button marking I-O-II
• Shape rectangular
• Related items RSC07
• Body dimensions 18.8x12.9x13.4mm
• Height above panel 5.8mm
• Stable positions number 1
• Button marking see

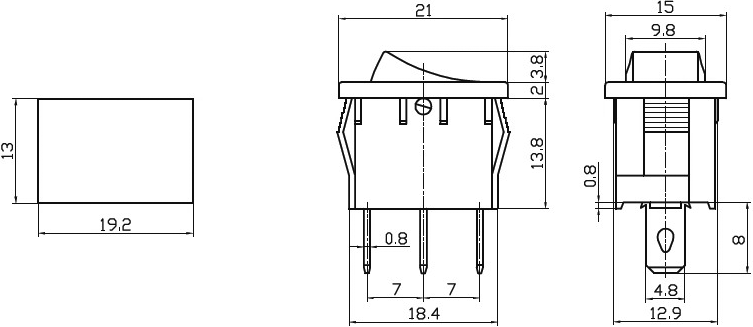

• Dimensions see
• Additional information
• Gross weight: 4.075 g
• Manufacturer part number: RSM1232C0BK

Parametri

SP3T
6A/250VAC
(ON)-OFF-(ON)
3
IP00
1
Taustiņslēdzis
Bez fiksācijas
1
Bez apgaismojuma

Papildu dokumentācija
