Apraksts

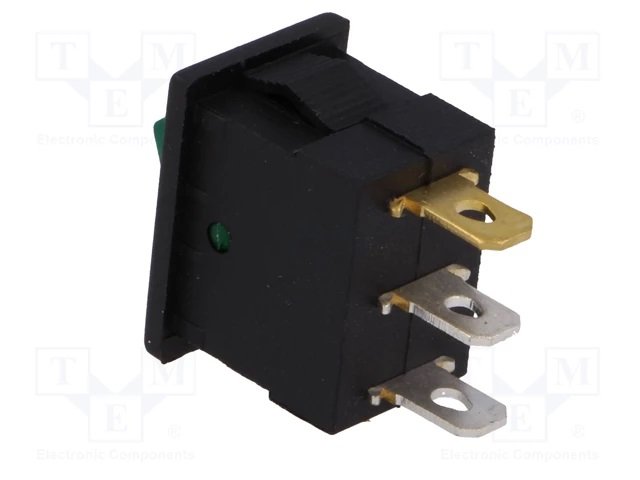

• Type of switch ROCKER
• Contacts configuration  SPST
• Number of positions 2
• Switching method  OFF-ON
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  3A / 250V AC
• (at resistive load)
• Key button colour green
• Illumination neon lamp
• Max. contact resistance: 35mΩ
• Body colour black
• Operating temperature -30...80°C
• Leads 4,8x0,8mm connectors
• Electrical life 10000 cycles
• Mounting hole diameter 19.2x13mm
• Button marking •
• Backlight colour green
• Shape rectangular
• Related items RSC07
• Body dimensions 18.8x12.9x14.4mm
• Height above panel 5.8mm
• Stable positions number 2
• Button marking see
• Additional information
• Gross weight: 4.59 g
• Manufacturer part number: RSSM101A2C2GN

Parametri

SPST
3A/250VAC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
230VAC
