Apraksts

• Manufacturer CANAL ELECTRONIC
• Type of switch ROCKER
• Contacts configuration  SPST
• Number of positions 2
• Switching method  OFF-ON
• AC contacts rating @R  10A / 250V AC
• Key button colour black
• Illumination none
• Max. contact resistance: 50mΩ
• Body colour black
• Body material polyamide
• Operating temperature -25...80°C
• Leads 4,8x0,8mm connectors
• Electrical life 10000 cycles
• Mounting hole diameter 19.2x6.65mm
• Button marking I-O
• Shape rectangular
• Body dimensions 21.6x6.5x18.7mm
• Contact material silver alloy
• Height above panel 6mm
• Terminals material copper alloy
• Terminals plating silver plated
• Min. insulation resistance 100MΩ
• Stable positions number 2

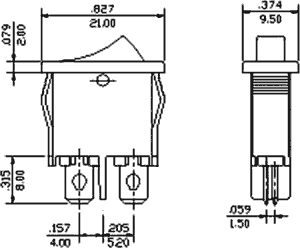

• Dimensions paskatīt
• Papildu informācijas
• Masa bruto: 2.56 g
• Oriģināls simbols: MRH10-C5N-BBN

Parametri

SPST
4A/250VAC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
Bez apgaismojuma
