Apraksts

• Type of switch ROCKER
• Contacts configuration  DPST
• Number of positions 2
• Switching method  OFF-ON
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  3A / 250V AC
• (at resistive load)
• Key button colour black
• Illumination none
• Max. contact resistance: 35mΩ
• Body colour black
• Operating temperature -30...80°C
• Leads 4,8x0,8mm connectors
• Electrical life 10000 cycles
• Mounting hole diameter 18x13.1mm
• Button marking I-O
• Shape rectangular
• Stable positions number 2

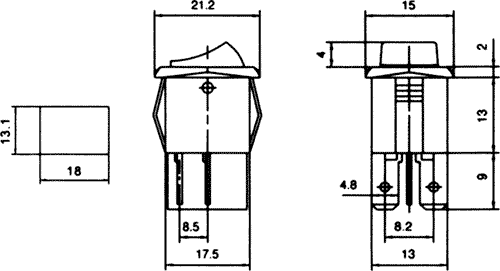

• Dimensions see
• Additional information
• Gross weight: 5.333 g
• Manufacturer part number: RSM2013C3BK

Parametri

DPST
3A/250VAC (=)
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
2
Bez apgaismojuma

Papildu dokumentācija
