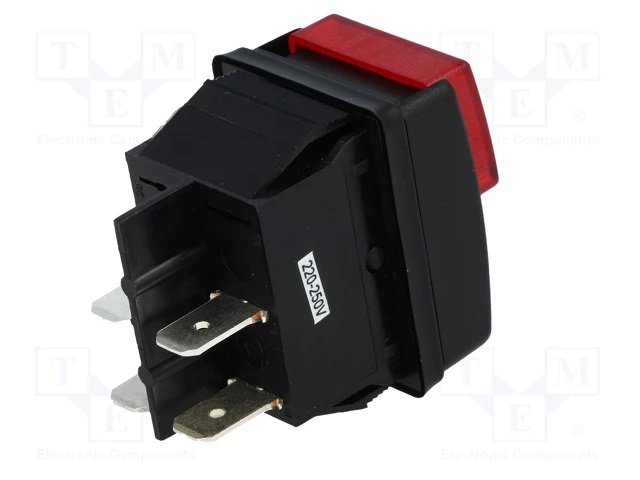

Apraksts

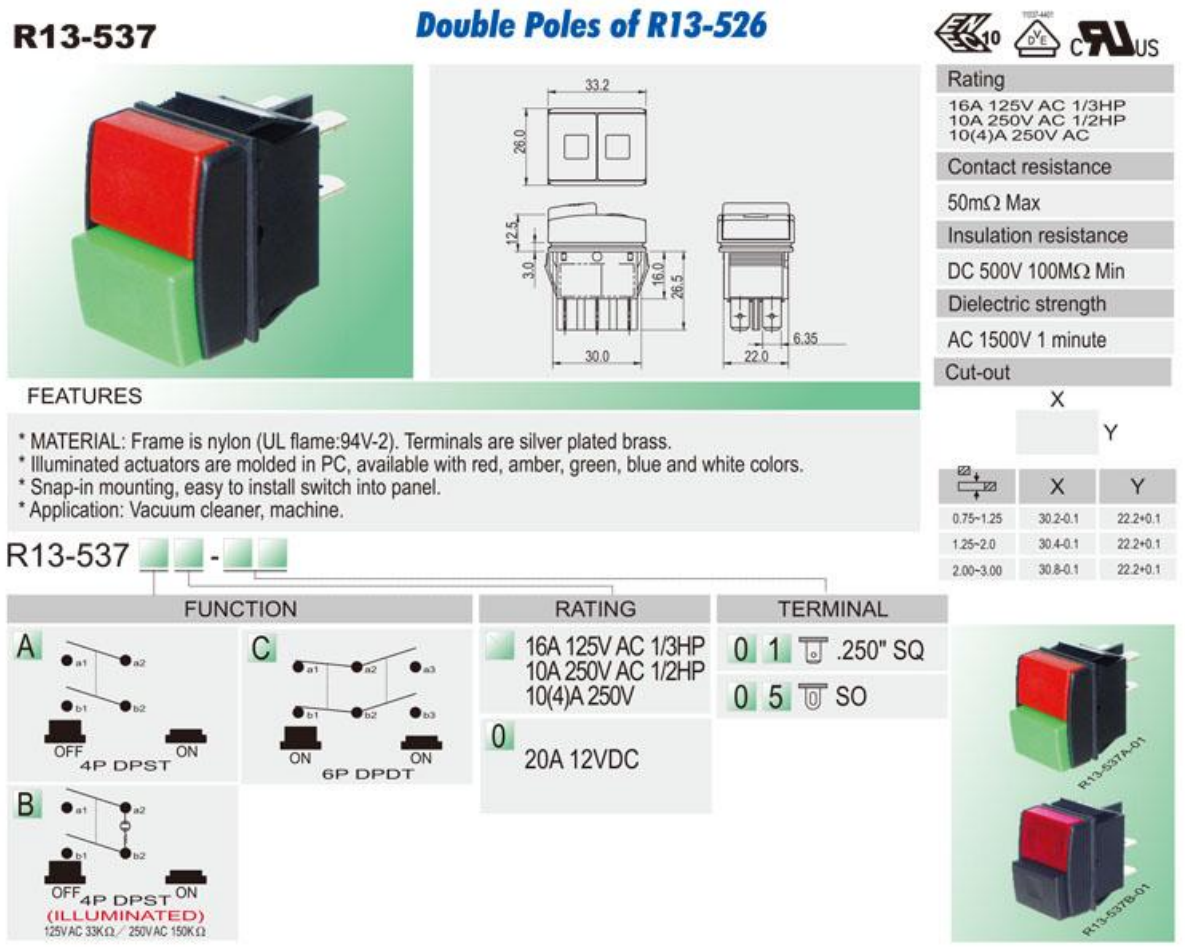

• Specification
• Switch type push-button
• Stable positions number 2-position
• Contacts configuration DPST
• AC contacts rating
• (at resistance load) 10 A / 250 VAC
• Actuator colour black/red
• Backlight colour red
• Illumination neon lamp
• Leads 6.3x0.8mm connectors
• Switching method OFF-ON
• Operating temperature -25...70°C
• Mounting on panel
• Mounting hole diameter 30.4 x 22.2mm
• Max. contact resistance: 50mΩ;
• Body material plastic
• Panel thickness 0.75...3mm

Parametri

DPST
10A/250VAC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
2
230VAC

Papildu dokumentācija
