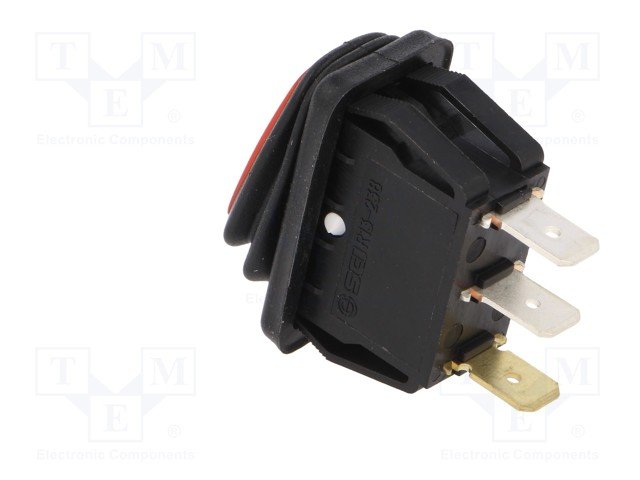

Apraksts

• Specification
• Switch type ROCKER
• Stable positions number 2-position
• Contacts configuration SPST
• Switching method ON-OFF
• AC contacts rating
• (at resistance load) 16 A / 250 VAC
• Key button colour orange
• Sealing IP65
• Illumination LED 12V DC
• Max. contact resistance: 50mΩ;
• Body colour black
• Flammability rating UL94V-2
• Operating temperature -20...85°C
• Leads 6.3x0.8mm connectors
• Panel thickness max 4.5mm
• Mounting hole diameter 29.4 x 13.8mm
• Number of positions 2
• Button marking blank
• Backlight colour orange

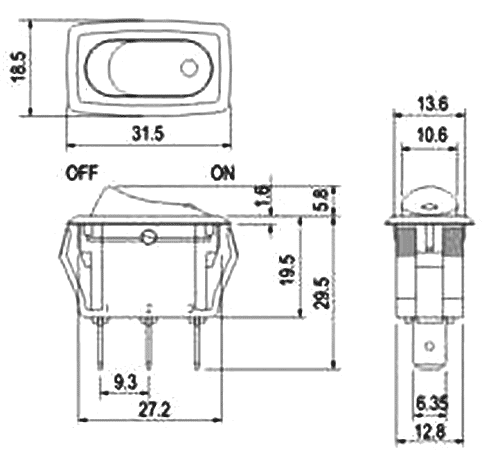

• Body dimensions 31.5 x 18.5 x 21.1mm
• Dielectric strenght 1.5kV AC

Parametri

SPST
25A/14VDC
OFF-ON
2
IP65
2
Taustiņslēdzis
Ar fiksāciju
1
LED12VDC
