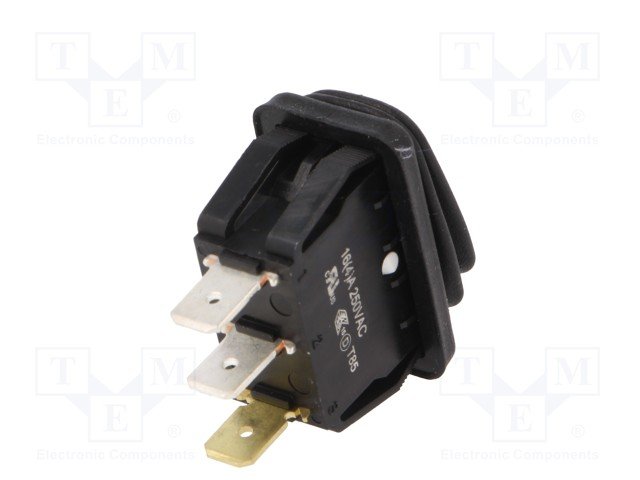

Apraksts

• Manufacturer SCI
• Type of switch ROCKER
• Contacts configuration SPST
• Number of positions 2
• Stable positions number 2-position
• Switching method
• (item in brackets is instantaneous) OFF-ON
• AC contacts rating @R
• (at resistance load) 16A / 250VAC
• Key button colour red
• IP rating IP65
• Illumination neon lamp 230V
• Max. contact resistance: 50mΩ
• Body colour black
• Flammability rating UL94V-2
• Operating temperature -20...85°C
• Leads 6,3x0,8mm connectors
• Panel thickness max 4.5mm
• Mounting hole diameter 29.4 x 13.8mm
• Button marking blank
• Backlight colour red
• Shape rectangular
• Manufacturer series R13-238-AC

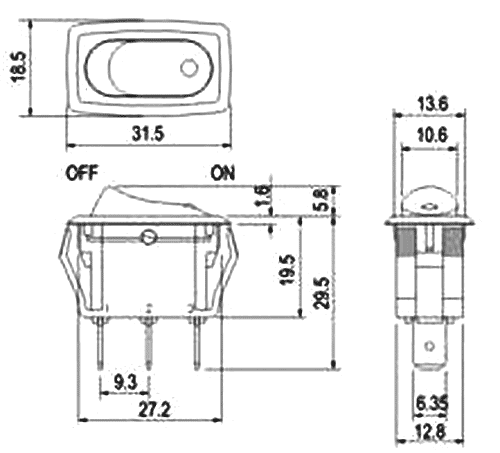

• Body dimensions 31.5 x 18.5 x 21.1mm
• Dielectric strenght 1.5kV AC

Parametri

SPST
16A/250VAC
OFF-ON
2
IP65
2
Taustiņslēdzis
Ar fiksāciju
1
230VAC
