• Type of switch ROCKER
• Contacts configuration  SPST
• Number of positions 2
• Switching method  OFF-ON
• AC contacts rating @R  10A / 250V AC
• DC contacts rating @R  10A / 24V DC
• Key button colour black
• Illumination LED 2V DC
• Max. contact resistance: 100mΩ
• Body colour black
• Flammability rating UL94V-2
• Operating temperature -25...85°C
• Leads 4,8x0,8mm connectors
• Panel thickness max. 3mm
• Mounting hole diameter Ø20mm
• Button marking blank
• Backlight colour green
• Shape round
• Manufacturer series R13-112
• Button shape round
• Stable positions number 2

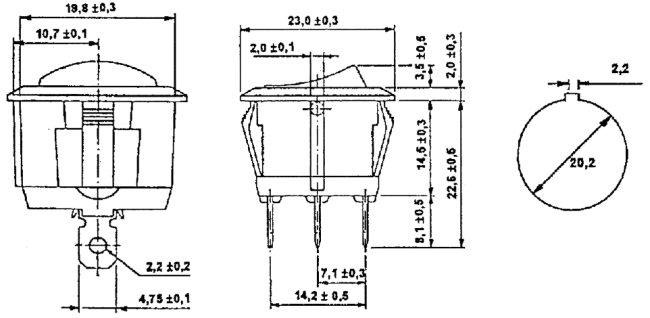

• Dimensions see
• Additional information
• Gross weight: 4.643 g

Parametri

SPST
10A/250VAC
10A/24VDC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
LED2VDC
