Apraksts

• Manufacturer E-SWITCH
• Type of switch microswitch TACT
• Contacts configuration  SPST
• Number of positions 2
• DC contacts rating @R  0.05A / 12V DC
• (at resistive load)
• Mounting SMD
• Illumination none
• Operating Force 1.27N

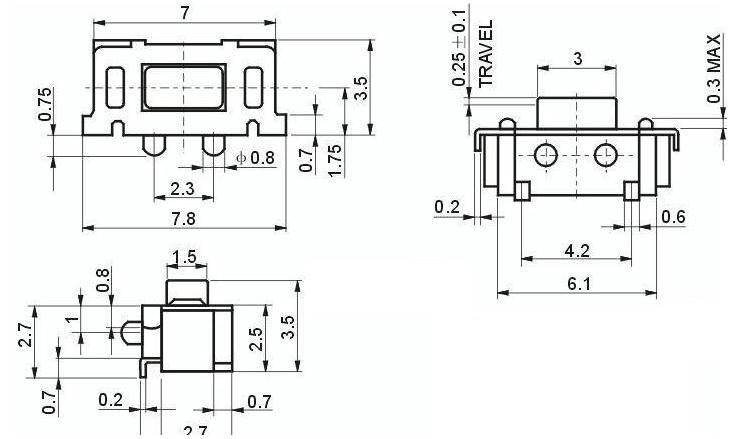

• Body dimensions 6.9x2.5x3.4mm
• Button height  1mm
• (measured from PCB)
• Switching method  OFF-(ON)
• (the position in bracket indicates momentary position.)
• Terminal pitch 0.25mm
• Operating temperature -30...70°C
• Button shape rectangular
• Actuator colour black
• Key stroke 0.25mm
• Leads soldering lugs
• Max. contact resistance: 100mΩ
• Mechanical durability 50000 cycles
• Stable positions number 1
• Additional information
• Gross weight: 0.113 g
• Manufacturer part number: TL3330AF130QG

Parametri

SMD
SPST-NO
0.05A/32VDC
7x3.5x3.5mm
2N
0.8mm
Leņķisks 90°
