Apraksts

• Manufacturer PANASONIC
• Type of switch microswitch TACT
• Contacts configuration SPST
• Number of positions 2
• DC contacts rating @R
• (at resistive load) 0.05A / 12V DC
• Mounting SMT
• Illumination none
• Operating Force 2.2N

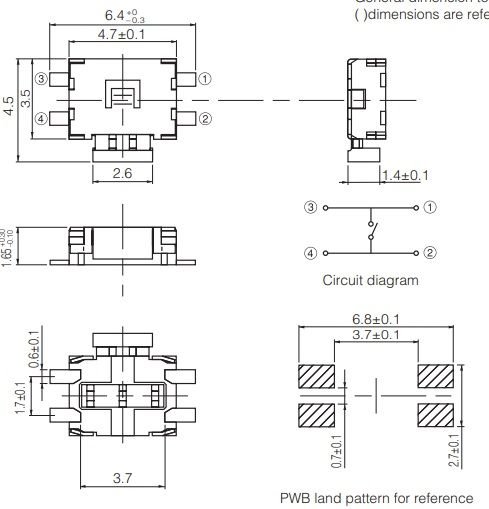

• Body dimensions 4.7x3.5x1.65mm
• Button height
• (measured from PCB) 1.65mm
• Switching method
• (item in brackets is instantaneous) OFF-(ON)
• Operating temperature -20...70°C
• Button shape rectangular
• Actuator colour black
• Leads for PCB
• Max. contact resistance: 500mΩ
• Min. insulation resistance 100MΩ
• Manufacturer series EVQPU
• Mechanical durability 100000 cycles
• Kind of package reel
• Stable positions number 1 Additional information
• Gross weight: 1 g
• Manufacturer part number: EVQPUA02K

Parametri

SMD
SPST-NO
0.05A/12VDC
4.7x3.5x1.65mm
2.2N
1mm
Leņķisks 90°
