Apraksts

• Manufacturer PANASONIC
• Type of switch microswitch TACT
• Contacts configuration SPST
• Number of positions 2
• DC contacts rating @R
• (at resistive load) 0.02A / 15V DC
• Mounting SMT
• Illumination none
• Operating Force 1.6N
• Button height
• (measured from PCB) 1.6mm
• Switching method
• (item in brackets is instantaneous) (ON)-OFF
• Button shape rectangular
• Operating temperature -40...85°C
• Leads for PCB
• Max. contact resistance: 100mΩ
• Min. insulation resistance 100MΩ
• Manufacturer series EVPAK
• Mechanical durability 500000cycles
• Kind of package reel
• IP rating IP67

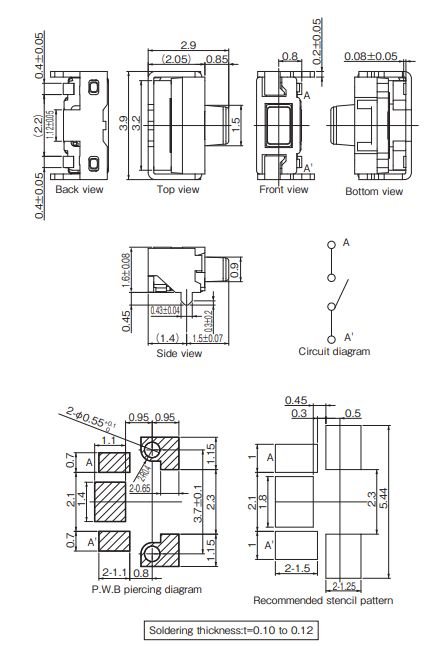

• Body dimensions 2x3.9x1.6mm
• Stable positions number 1 Additional information
• Gross weight: 0.078 g

Parametri

SMD
SPST-NO
0.02A/15VDC
IP67
3.9x2x1.6mm
1.6N
0.9mm
Leņķisks 90°
