Apraksts

• Manufacturer NINIGI
• Type of switch microswitch TACT
• Contacts configuration SPST-NO
• Number of positions 2
• DC contacts rating @R(at resistive load) 0.05A / 12V DC
• Mounting SMT
• Illumination none
• Operating Force 1.6N

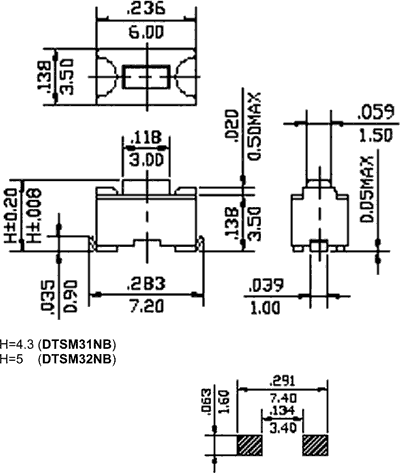

• Body dimensions 3x6mm
• Button height(measured from PCB) 5mm
• Switching method(the position in bracket indicates momentary position.) OFF-(ON)
• Terminal pitch 1.6x7.4mm
• Operating temperature -25...70°C
• Button shape rectangular
• Actuator colour black
• Leads for PCB
• Max. contact resistance: 50mΩ
• Min. insulation resistance 100MΩ
• Soldering temperature 250°C
• Stable positions number 1

Parametri

SMD
SPST-NO
0.05A/12VDC
6x3.5x3.5mm
Horizontāls
1.6N
1.5mm
