Apraksts

• Manufacturer CANAL ELECTRONIC
• Type of switch microswitch TACT
• Contacts configuration  SPST-NO
• Number of positions 2
• DC contacts rating @R  0.05A / 12V DC
• Mounting SMT
• Illumination none
• Operating Force 1.6N
• Body material stainless steel,  thermoplastic

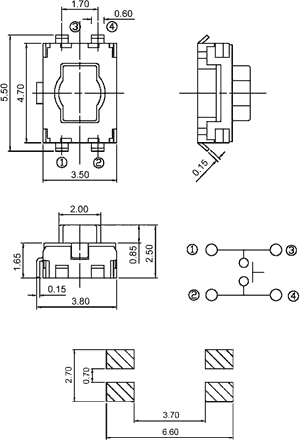

• Body dimensions 4.7x3.5mm
• Button height  2.5mm
• Switching method  OFF-(ON)
• Terminal pitch 1.7x5.15mm
• Operating temperature -20...70°C
• Button shape rectangular
• Actuator colour white
• Terminals material brass
• Terminals plating silver plated
• Leads for PCB
• Contact material steel
• Max. contact resistance: 500mΩ
• Min. insulation resistance 1000MΩ
• Contact plating silver plated
• Mechanical durability 100000 cycles
• Soldering temperature 230°C / 5 s
• Kind of package reel
• Stable positions number 1
• Additional information
• Gross weight: 0.245 g
• Manufacturer part number: TS47-25MV160

Parametri

SMD
SPST-NO
0.05A/12VDC
4.7x3.5x1.65mm
Horizontāls
1.6N
0.85mm
