Apraksts

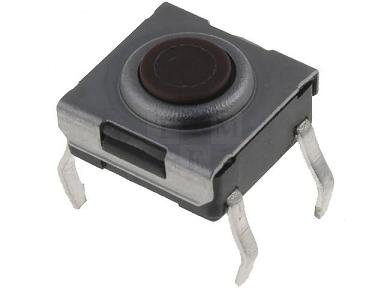

• Manufacturer CANAL ELECTRONIC
• Type of switch microswitch TACT
• Contacts configuration  SPST-NO
• Number of positions 2
• DC contacts rating @R  0.05A / 12V DC
• Mounting THT
• Illumination none
• Operating Force 1.6N
• Body material stainless steel,  thermoplastic

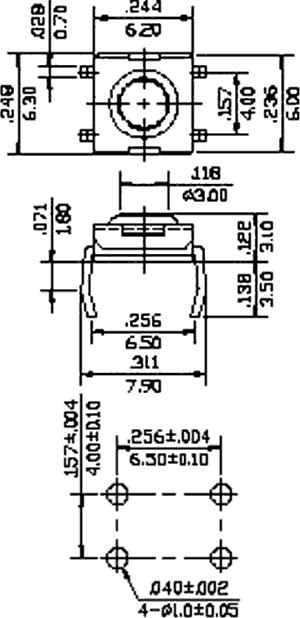

• Body dimensions 6x6mm
• Button height  3.1mm
• Switching method  OFF-(ON)
• Terminal pitch 4x6.5mm
• Operating temperature -20...85°C
• Button shape round
• Actuator colour black
• Button material polyamide
• Terminals material brass
• Terminals plating silver plated
• Leads for PCB,  straight
• Contact material phosphor bronze
• Max. contact resistance: 100mΩ
• Contact plating silver plated
• Electrical life 100000 cycles
• Stable positions number 1
• Additional information
• Gross weight: 0.259 g
• Manufacturer part number: DTSHW6-6N-B

Parametri

SPST-NO
0.05A/12VDC
6.2x6.2x2.8mm
Horizontāls
1.6N
0.3mm
THT
IP00

Papildu dokumentācija
