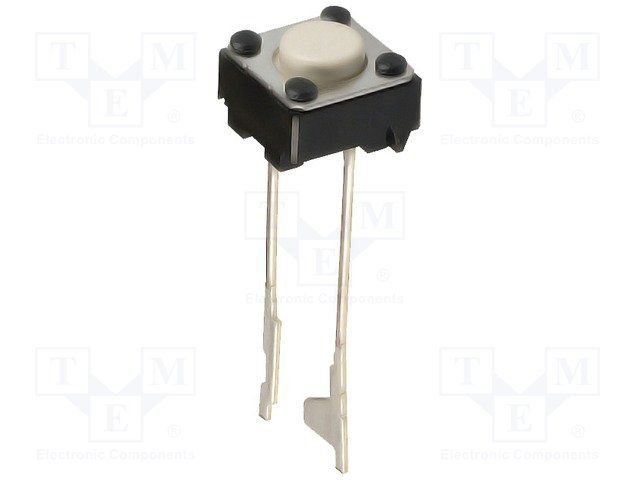

Apraksts

• Manufacturer OMRON
• Switch type microswitch
• Stable positions number 1-position
• Contacts configuration SPST-NO
• DC contacts rating
• (at resistance load) 0.05 A / 24 VDC
• Mounting THT
• Switching torque 0.98N
• Body dimensions 6 x 6mm
• Button height
• (measured from PCB) 4.3mm
• Switching method OFF-(ON)
• Button shape round
• Terminal pitch 5mm
• Operating temperature -25...70°C
• Actuator colour ivory
• Leads for PCB, straight
• Max. contact resistance: 100mΩ
• Min. insulation resistance 100MΩ
• Mechanical durability 300000cycles
• Key stroke 0.25mm
• Contact material phosphor bronze
• Contact plating silver plated

Parametri

THT
SPST-NO
0.05A/24VDC
6x6x4mm
0.98N
0.3mm
Horizontāli
