Apraksts

• Manufacturer ALPS
• Type of potentiometer shaft
• Power 50mW
• Resistance  100kΩ
• Tolerance ±20%
• Mechanical rotation angle 300°
• Leads for PCB
• Characteristics linear
• Shaft diameter 6mm
• Shaft surface D spring

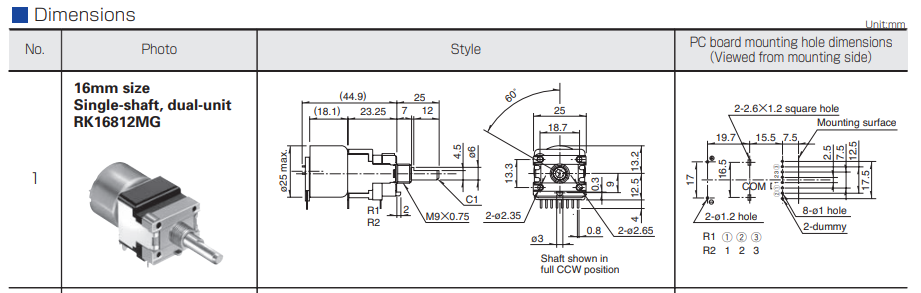

• Body dimensions 25x25.7x44.9mm
• Thread length 7mm
• Kind of potentiometer single turn
• Shaft length 18mm
• L shaft length  25mm
• Shaft material metal
• Cut depth 1.5mm
• Mechanical durability 15000 cycles
• Potentiometer features
• motorized
• stereo
• Additional information
• Gross weight: 61.86 g
• Manufacturer part number: RK16812MG099

Parametri

100K
0.05W
Vienapgriezienu
Lineāre atkarība
Stereo

Papildu dokumentācija
