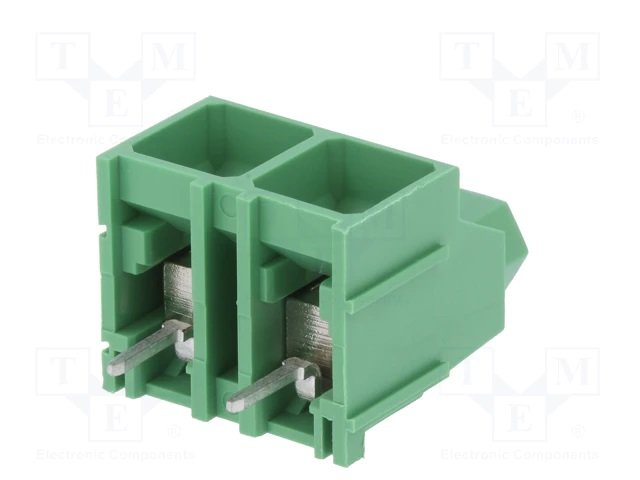

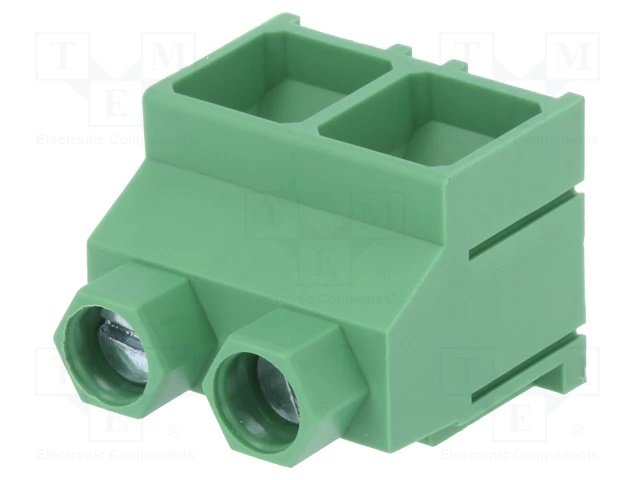

Apraksts

• Manufacturer DEGSON ELECTRONICS
• Type of connector PCB terminal block
• Spatial orientation angled 90°
• Contacts pitch 9.52mm
• Number of ways 2
• Mechanical mounting on PCBs
• Electrical mounting cage clamp, screw terminal, THT
• Wire cross-section 4mm2
• Wire size 30AWG...10AWG
• Connector terminal
• Contact plating tinned
• Current rating 32A
• Height 21.5mm
• Colour green
• Rated voltage 1kV
• Body material polyamide 66
• Connectors features assembling possibility
• Length 19.04mm
• Contact material brass
• Operating temperature -40...105°C
• Depth 16mm
• Flammability rating UL94V-0
• Type of pin configuration 1x2
• Conform to the norm UL

Parametri

9.52mm
2
Ligzda
Taisns
PCB
