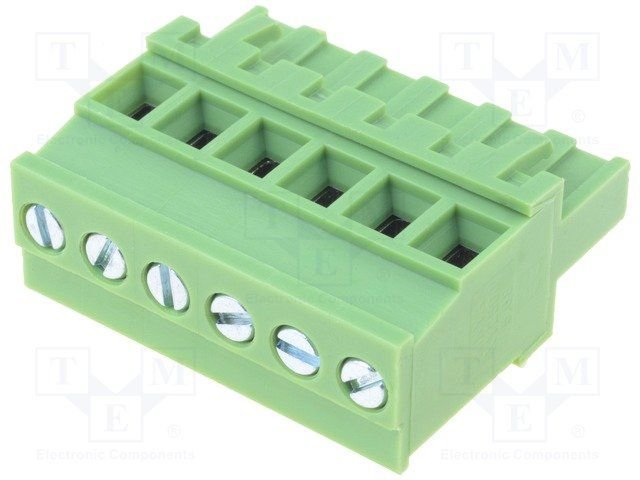

Apraksts

• Manufacturer XINYA
• Type of connector pluggable terminal block
• Contacts pitch 5.08mm
• Number of ways 6
• Spatial orientation  angled 90°
• Connector plug
• Kind of connector female
• Mechanical mounting for cable
• Electrical mounting cage clamp,  screw terminal
• Colour green
• Rated voltage  300V
• Current rating 15A
• Type of pin configuration 1x6
• Body material PA66
• Locking system latch
• Flammability rating UL94V-0
• Conform to the norm UL
• Contact plating nickel plated
• Operating temperature -40...120°C
• Contact material brass
• Number of terminals 6
• Wire size 28AWG...12AWG
• Wire cross section 2.5mm2
• Papildu informācijas
• Masa bruto: 12.625 g
• Oriģināls simbols: XY2500F-BV(5.08)-6P

Parametri

6
Ligzda
5.08mm
Leņķisks 90°
Terminal blocks vadam
