Terminal Blocks uz vadu, ligzda, 6pin, 5.08mm, 2.5mm2, 12A
Terminal Blocks uz vadu, ligzda, 6pin, 5.08mm, 2.5mm2, 12A
Terminal Blocks uz vadu, ligzda, 6pin, 5.08mm, 2.5mm2, 12A Terminal Blocks uz vadu, ligzda, 6pin, 5.08mm, 2.5mm2, 12A

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Terminal Blocks uz vadu, ligzda, 6pin, 5.08mm, 2.5mm2, 12A

Cena: 1.26 €
00016331
TBW-5-6P/GN
12
  • Apraksts

    • Manufacturer NINIGI
    • Type of connector pluggable terminal block
    • Contacts pitch 5.08mm
    • Number of ways 6
    • Spatial orientation  straight
    • Connector plug
    • Kind of connector female
    • Mechanical mounting for cable
    • Electrical mounting screw terminal
    • Colour green
    • Rated voltage  300V
    • Type of pin configuration 1x6
    • Current rating 15A
    • Body material polyamide
    • Locking system latch
    • Flammability rating UL94V-0
    • Contact plating tinned
    • Operating temperature -40...105°C
    • Contact material brass
    • Number of terminals 6
    • Height 15.2mm
    • Depth 17.7mm
    • Length 30.48mm
    • Stripped wire length 8mm
    • Wire cross section 2.5mm2

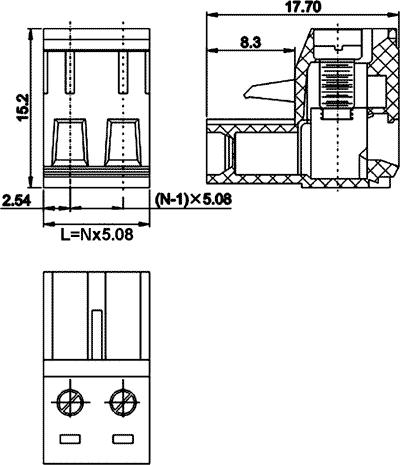

    • Dimensions see
    • Additional information
    • Gross weight: 9.019 g
    • Manufacturer part number: TBW-5-6P/GN

    Parametri

    6
    Ligzda
    Taisns
    5.08mm
    Terminal blocks vadam
