Apraksts

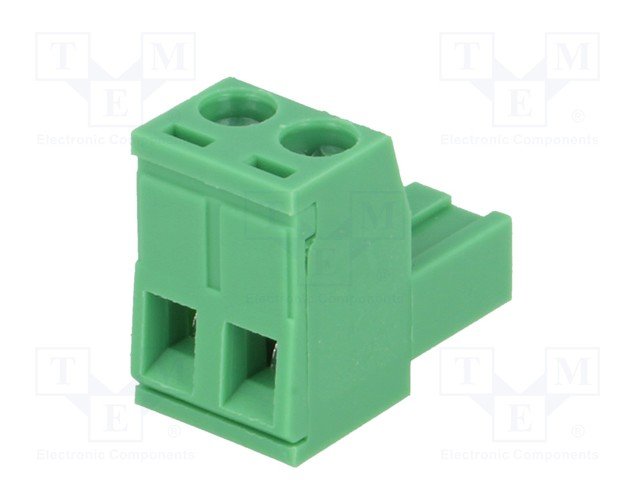

• Manufacturer KARSON
• Type of connector pluggable terminal block
• Contacts pitch 5mm
• Number of ways 2
• Spatial orientation  straight
• Connector plug
• Kind of connector female
• Mechanical mounting for cable
• Electrical mounting screw terminal
• Colour green
• Rated voltage  300V
• Current rating 11A
• Type of pin configuration 1x2
• Body material PA66
• Locking system friction lock
• Flammability rating UL94V-0
• Conform to the norm UL
• Contact plating tinned
• Operating temperature -40...105°C
• Contact material brass
• Number of terminals 2
• Wire size 24AWG...12AWG
• Wire cross section 0.5...2.5mm2
• Additional information
• Gross weight: 2.625 g
• Manufacturer part number: 326-021-14

Parametri

5.08mm
2
Ligzda
Taisns
Terminal blocks vadam
