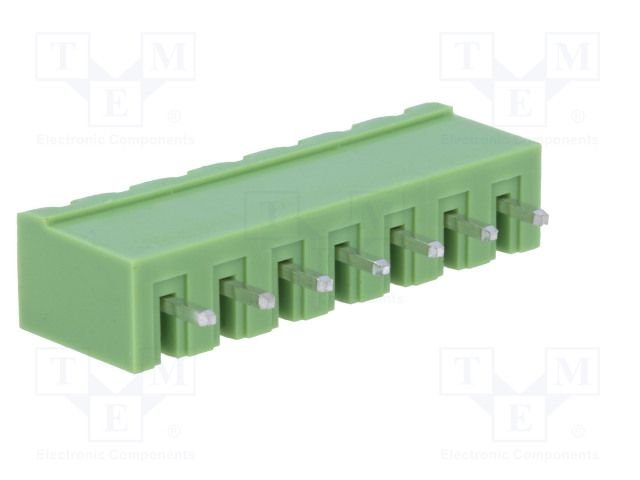

Apraksts

• Manufacturer XINYA
• Type of connector pluggable terminal block
• Contacts pitch 5.08mm
• Number of ways 7
• Spatial orientation straight
• Connector socket
• Kind of connector male
• Mechanical mounting on PCBs
• Electrical mounting THT
• Colour green
• Rated voltage 300V
• Current rating 15A
• Type of pin configuration 1x7
• Body material PA66
• Locking system friction lock
• Flammability rating UL94V-0
• Conform to the norm UL
• Contact plating tinned
• Operating temperature -40...105°C
• Contact material brass
• Number of pins 7
• Height 12mm Additional information
• Gross weight: 2.395 g
• Manufacturer part number: XY2500V-D(5.08)-7PIN

Parametri

7
Spraudnis
Taisns
5.08mm
Terminal blocks PCB

Papildu dokumentācija
