Apraksts

• Manufacturer NINIGI
• Type of connector pluggable terminal block
• Contacts pitch 5.08mm
• Number of ways 7
• Spatial orientation  angled 90°
• Connector socket
• Kind of connector male
• Mechanical mounting on PCBs
• Electrical mounting THT
• Colour green
• Rated voltage  300V
• Type of pin configuration 1x7
• Current rating 15A
• Body material polyamide
• Locking system friction lock
• Flammability rating UL94V-0
• Contact plating tinned
• Operating temperature -40...105°C
• Contact material brass
• Number of pins 7
• Connector variant without side walls
• Height 8mm
• Depth 12.3mm
• Connectors features assembling possibility
• Length 35.56mm
• Soldering temperature 250°C / 5 s

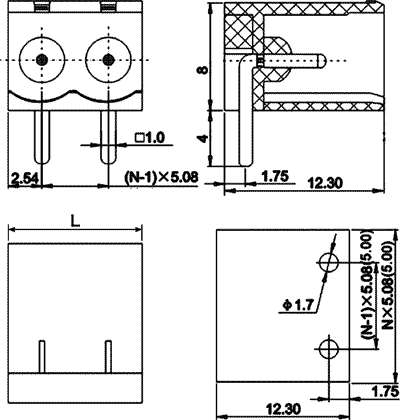

• Dimensions see
• Additional information
• Gross weight: 2.57 g
• Manufacturer part number: TBG-5-KB-7P/GN

Parametri

7
Spraudnis
5.08mm
Leņķisks 90°
Terminal blocks PCB

Papildu dokumentācija
