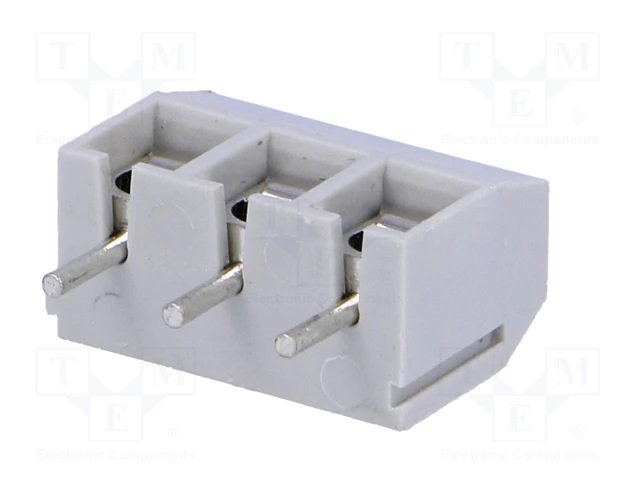

Apraksts

• Manufacturer NINIGI
• Type of connector PCB terminal block
• Spatial orientation  angled 90°
• Contacts pitch 5mm
• Number of ways 3
• Mechanical mounting on PCBs
• Electrical mounting screw terminal,  THT
• Connector variant with wire protector
• Connector terminal
• Contact plating tinned
• Current rating 16A
• Height 10mm
• Colour grey
• Rated voltage  250V
• Body material PBT
• Stripped wire length 5mm
• Connectors features assembling possibility
• Length 15mm
• Contact material brass
• Operating temperature -30...120°C
• Depth 7.6mm
• Flammability rating UL94V-0
• Type of pin configuration 1x3
• Conform to the norm CE
• Soldering temperature 250°C / 5 s
• Wire cross section 1.5mm2

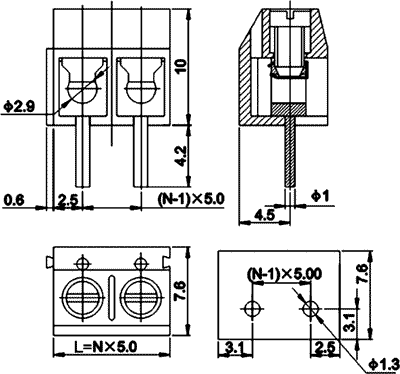

• Dimensions see
• Additional information
• Gross weight: 2.373 g
• Manufacturer part number: TB-5.0-P-3P/GY

Parametri

3
Taisns
5.08mm
Aizspiednis kontakts PCB
Terminal blocks PCB

Papildu dokumentācija
